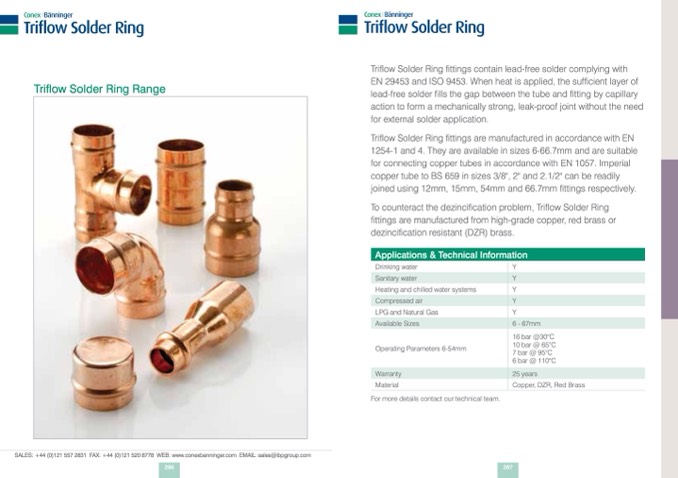

Triflow Solder Ring Range

Triflow Solder Ring fittings contain lead-free solder complying with

EN 29453 and ISO 9453. When heat is applied, the sufficient layer of

lead-free solder fills the gap between the tube and fitting by capillary

action to form a mechanically strong, leak-proof joint without the need

for external solder application.

Triflow Solder Ring fittings are manufactured in accordance with EN

1254-1 and 4. They are available in sizes 6-66.7mm and are suitable

for connecting copper tubes in accordance with EN 1057. Imperial

copper tube to BS 659 in sizes 3/8", 2" and 2.1/2" can be readily

joined using 12mm, 15mm, 54mm and 66.7mm fittings respectively.

To counteract the dezincification problem, Triflow Solder Ring

fittings are manufactured from high-grade copper, red brass or

dezincification resistant (DZR) brass.

Applications & Technical Information

Drinking water

Heating and chilled water systems

LPG and Natural Gas

Operating Parameters 6-54mm

Material

For more details contact our technical team.

Y

Y

Y

Y

Y

6 - 67mm

16 bar @30°C

10 bar @ 65°C

7 bar @ 95°C

6 bar @ 110°C

Copper, DZR, Red Brass

Warranty

25 years

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

286

Sanitary water

Compressed air

Available Sizes
