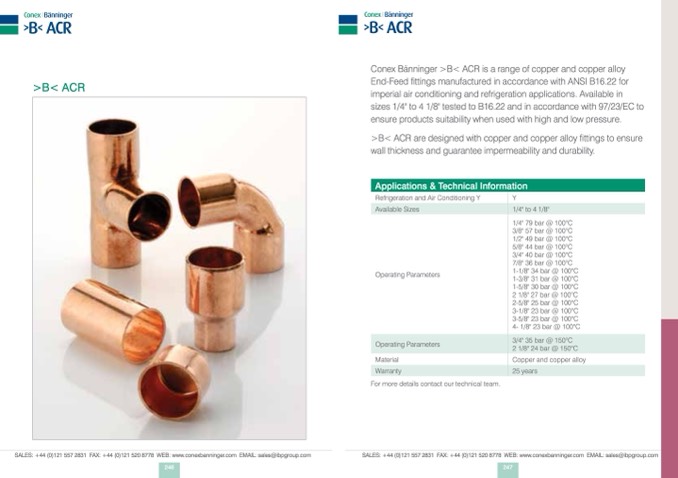

>B< ACR

Conex Bänninger >B< ACR is a range of copper and copper alloy

End-Feed fittings manufactured in accordance with ANSI B16.22 for

imperial air conditioning and refrigeration applications. Available in

sizes 1/4" to 4 1/8" tested to B16.22 and in accordance with 97/23/EC to

ensure products suitability when used with high and low pressure.

>B< ACR are designed with copper and copper alloy fittings to ensure

wall thickness and guarantee impermeability and durability.

Applications & Technical Information

Refrigeration and Air Conditioning Y

Operating Parameters

1/4" to 4 1/8"

1/4" 79 bar @ 100°C

3/8" 57 bar @ 100°C

1/2" 49 bar @ 100°C

5/8" 44 bar @ 100°C

3/4" 40 bar @ 100°C

7/8" 36 bar @ 100°C

1-1/8" 34 bar @ 100°C

1-3/8" 31 bar @ 100°C

1-5/8" 30 bar @ 100°C

2 1/8" 27 bar @ 100°C

2-5/8" 25 bar @ 100°C

3-1/8" 23 bar @ 100°C

3-5/8" 23 bar @ 100°C

4- 1/8" 23 bar @ 100°C

Copper and copper alloy

246

Available Sizes

Operating Parameters

Material

For more details contact our technical team.

Warranty

25 years

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

247

3/4" 35 bar @ 150°C

2 1/8" 24 bar @ 150°C
