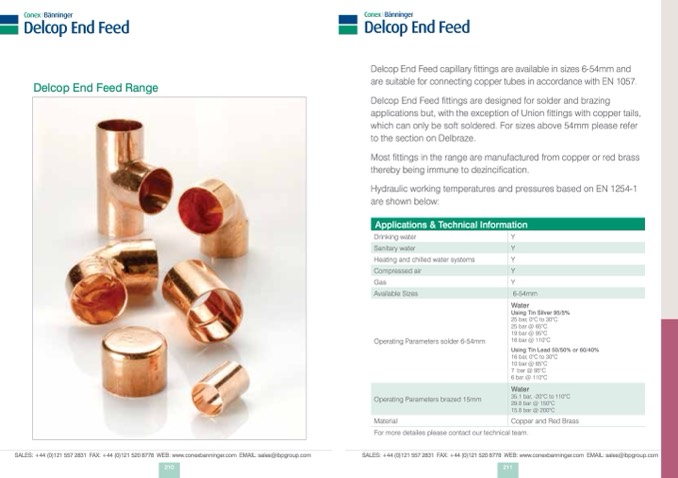

Delcop End Feed Range

Delcop End Feed capillary fittings are available in sizes 6-54mm and

are suitable for connecting copper tubes in accordance with EN 1057.

Delcop End Feed fittings are designed for solder and brazing

applications but, with the exception of Union fittings with copper tails,

which can only be soft soldered. For sizes above 54mm please refer

to the section on Delbraze.

Most fittings in the range are manufactured from copper or red brass

thereby being immune to dezincification.

Hydraulic working temperatures and pressures based on EN 1254-1

are shown below:

Applications & Technical Information

Drinking water

Y

Sanitary water

Y

Heating and chilled water systems

Y

Compressed air

Y

Gas

Y

Available Sizes

6-54mm

Operating Parameters solder 6-54mm

Water

Using Tin Silver 95/5%

25 bar, 0°C to 30°C

25 bar @ 65°C

19 bar @ 95°C

16 bar @ 110°C

Using Tin Lead 50/50% or 60/40%

16 bar, 0°C to 30°C

10 bar @ 65°C

7 bar @ 95°C

6 bar @ 110°C

Operating Parameters brazed 15mm

Water

35.1 bar, -20°C to 110°C

29.8 bar @ 150°C

15.8 bar @ 200°C

Material

Copper and Red Brass

For more detailes please contact our technical team.
