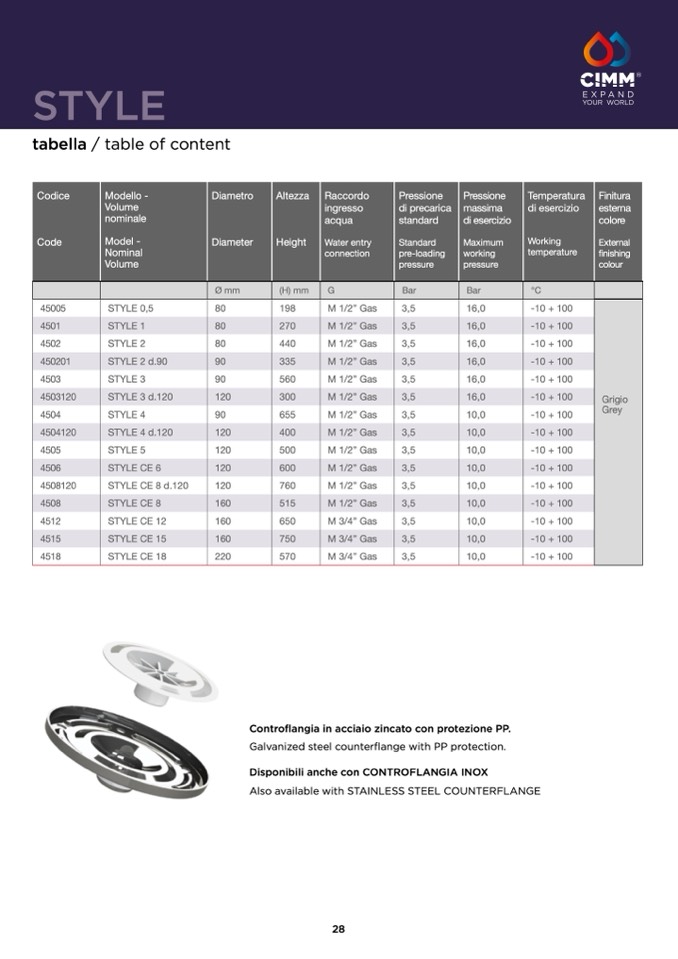

STYLE
tabella / table of content
Codice
Code
Modello -
Volume
nominale
Model -
Nominal
Volume
Diametro
Diameter
Altezza
Height
Raccordo
ingresso
acqua
Water entry
connection
Pressione
di precarica
standard
Standard
pre-loading
pressure
Pressione
massima
di esercizio
Maximum
working
pressure
Temperatura
di esercizio
Working
temperature
Finitura
esterna
colore
External
finishing
colour
Ø mm
(H) mm
G
Bar
Bar
°C
45005
STYLE 0,5
80
198
M 1/2” Gas
3,5
16,0
-10 + 100
Grigio
Grey
4501
STYLE 1
80
270
M 1/2” Gas
3,5
16,0
-10 + 100
4502
STYLE 2
80
440
M 1/2” Gas
3,5
16,0
-10 + 100
450201
STYLE 2 d.90
90
335
M 1/2” Gas
3,5
16,0
-10 + 100
4503
STYLE 3
90
560
M 1/2” Gas
3,5
16,0
-10 + 100
4503120
STYLE 3 d.120
120
300
M 1/2” Gas
3,5
16,0
-10 + 100
4504
STYLE 4
90
655
M 1/2” Gas
3,5
10,0
-10 + 100
4504120
STYLE 4 d.120
120
400
M 1/2” Gas
3,5
10,0
-10 + 100
4505
STYLE 5
120
500
M 1/2” Gas
3,5
10,0
-10 + 100
4506
STYLE CE 6
120
600
M 1/2” Gas
3,5
10,0
-10 + 100
4508120
STYLE CE 8 d.120
120
760
M 1/2” Gas
3,5
10,0
-10 + 100
4508
STYLE CE 8
160
515
M 1/2” Gas
3,5
10,0
-10 + 100
4512
STYLE CE 12
160
650
M 3/4” Gas
3,5
10,0
-10 + 100
4515
STYLE CE 15
160
750
M 3/4” Gas
3,5
10,0
-10 + 100
4518
STYLE CE 18
220
570
M 3/4” Gas
3,5
10,0
-10 + 100
Controflangia in acciaio zincato con protezione PP.
Galvanized steel counterflange with PP protection.
Disponibili anche con CONTROFLANGIA INOX
Also available with STAINLESS STEEL COUNTERFLANGE
