RP

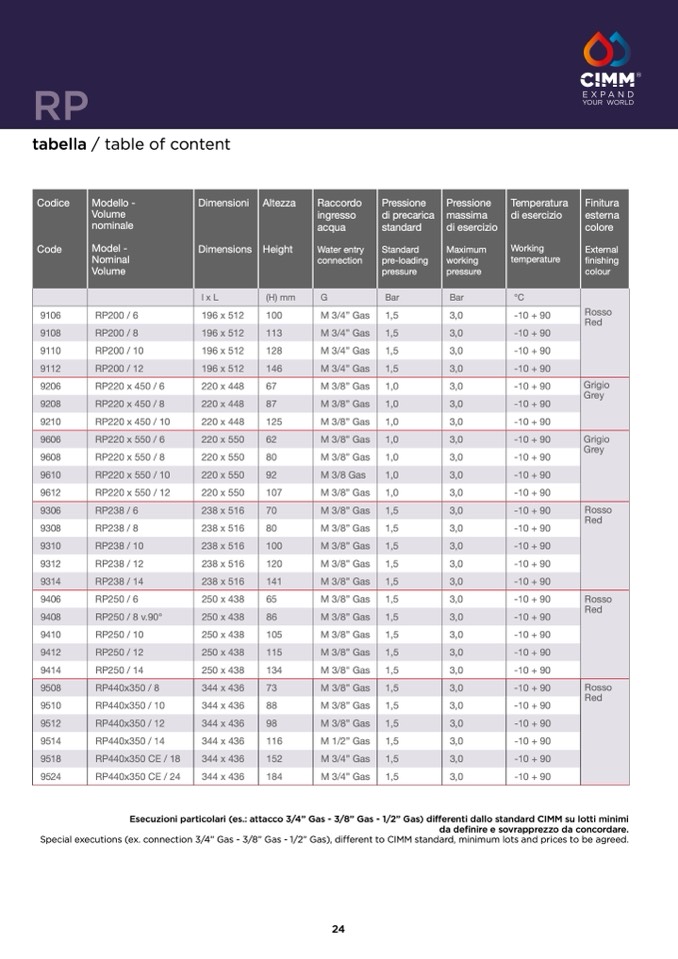

tabella / table of content

Codice

Modello -

Volume

nominale

Code

Model -

Nominal

Volume

Dimensioni

Dimensions

Altezza

Height

Raccordo

ingresso

acqua

Water entry

connection

Pressione

di precarica

standard

Standard

pre-loading

pressure

Pressione

massima

di esercizio

Maximum

working

pressure

Temperatura

di esercizio

Working

temperature

Finitura

esterna

colore

External

finishing

colour

9106

RP200 / 6

9108

RP200 / 8

9110

RP200 / 10

9112

RP200 / 12

l xL

196 x 512

196 x 512

196 x 512

196 x 512

(H) mm

100

113

128

146

G

M 3/4” Gas

M 3/4” Gas

M 3/4” Gas

M 3/4” Gas

Bar

Bar

1,5

3,0

1,5

3,0

1,5

3,0

1,5

3,0

°C

-10 + 90

-10 + 90

-10 + 90

-10 + 90

Rosso

Red

9206

RP220 x 450 / 6

9208

RP220 x 450 / 8

9210

RP220 x 450 / 10

220 x 448

67

220 x 448

87

220 x 448

125

M 3/8” Gas

1,0

3,0

M 3/8” Gas

1,0

3,0

M 3/8” Gas

1,0

3,0

-10 + 90

-10 + 90

-10 + 90

Grigio

Grey

9606

RP220 x 550 / 6

9608

RP220 x 550 / 8

9610

RP220 x 550 / 10

9612

RP220 x 550 / 12

220 x 550

62

220 x 550

80

220 x 550

92

220 x 550

107

M 3/8” Gas

1,0

3,0

M 3/8” Gas

1,0

3,0

M 3/8 Gas

1,0

3,0

M 3/8” Gas

1,0

3,0

-10 + 90

Grigio

-10 + 90

-10 + 90

-10 + 90

Grey

9306

RP238 / 6

9308

RP238 / 8

9310

RP238 / 10

9312

RP238 / 12

9314

RP238 / 14

238 x 516

70

238 x 516

80

238 x 516

100

238 x 516

120

238 x 516

141

M 3/8” Gas

1,5

3,0

M 3/8” Gas

1,5

3,0

M 3/8” Gas

1,5

3,0

M 3/8” Gas

1,5

3,0

M 3/8” Gas

1,5

3,0

-10 + 90

-10 + 90

-10 + 90

-10 + 90

-10 + 90

Rosso

Red

9406

RP250 / 6

9408

RP250 / 8 v.90°

9410

RP250 / 10

9412

RP250 / 12

9414

RP250 / 14

250 x 438

65

250 x 438

86

250 x 438

105

250 x 438

115

250 x 438

134

M 3/8” Gas

1,5

3,0

M 3/8” Gas

1,5

3,0

M 3/8” Gas

1,5

3,0

M 3/8” Gas

1,5

3,0

M 3/8" Gas

1,5

3,0

-10 + 90

-10 + 90

-10 + 90

-10 + 90

-10 + 90

Rosso

Red

9508

RP440x350 / 8

9510

RP440x350 / 10

9512

RP440x350 / 12

9514

RP440x350 / 14

9518

RP440x350 CE / 18

9524

RP440x350 CE / 24

344 x 436

73

344 x 436

88

344 x 436

98

344 x 436

116

344 x 436

152

344 x 436

184

M 3/8” Gas

1,5

3,0

M 3/8” Gas

1,5

3,0

M 3/8” Gas

1,5

3,0

M 1/2” Gas

1,5

3,0

M 3/4” Gas

1,5

3,0

M 3/4” Gas

1,5

3,0

-10 + 90

-10 + 90

-10 + 90

-10 + 90

-10 + 90

-10 + 90

Rosso

Red

Esecuzioni particolari (es.: attacco 3/4” Gas - 3/8” Gas - 1/2” Gas) differenti dallo standard CIMM su lotti minimi

da definire e sovrapprezzo da concordare.

Special executions (ex. connection 3/4” Gas - 3/8” Gas - 1/2” Gas), different to CIMM standard, minimum lots and prices to be agreed.

24
