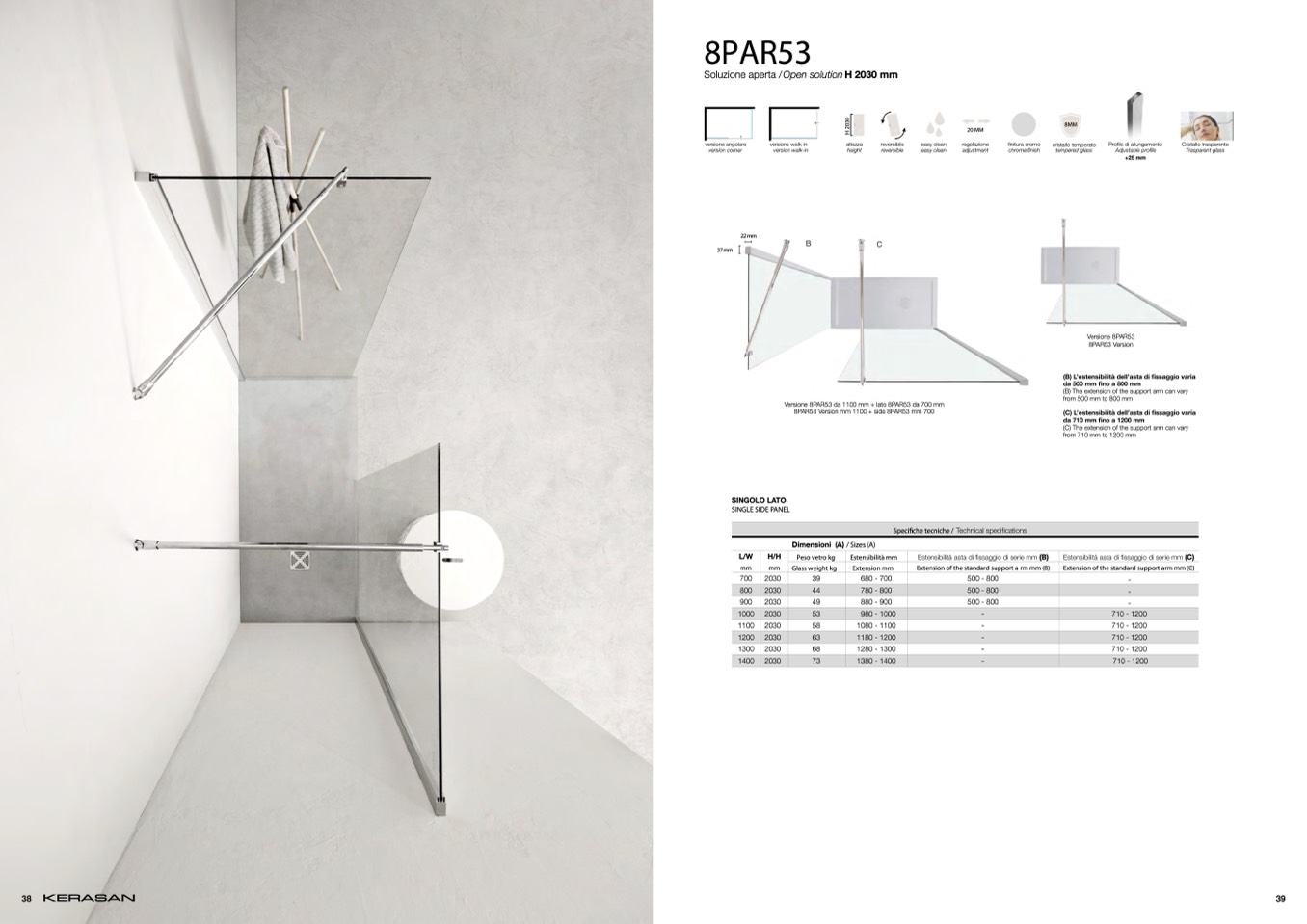

8PAR53

Soluzione aperta /Open solutionH 2030 mm

versione angolare

version corner

versione walk-in

version walk-in

altezza

height

reversibile

reversible

easy clean

easy clean

20 MM

regolazione

adjustment

finitura cromo

chrome finish

8MM

cristallo temperato

tempered glass

Profilo di allungamento

Adjustable profile

+25 mm

Cristallo trasparente

Trasparent glass

22 mm

37 mm

B

C

(B)

Extension of the standard support a rm mm (B)

Versione 8PAR53

8PAR53 Version

Versione 8PAR53 da 1100 mm + lato 8PAR53 da 700 mm

8PAR53 Version mm 1100 + side 8PAR53 mm 700

(B) The extension of the support arm can vary

from 500 mm to 800 mm

(C) The extension of the support arm can vary

from 710 mm to 1200 mm

(C)

Extension of the standard support arm mm (C)

-

-

-

710 - 1200

710 - 1200

710 - 1200

710 - 1200

SINGOLO LATO

SINGLE SIDE PANEL

L/W

mm

700

900

1100

1300

Specifiche tecniche /

Dimensioni

(A) / Sizes (A)

H/H

mm

Peso vetro kg

Glass weight kg

Estensibilità mm

Extension mm

2030

39

680 - 700

500 - 800

800

2030

44

780 - 800

500 - 800

2030

49

880 - 900

500 - 800

1000

2030

53

980 - 1000

-

2030

58

1080 - 1100

-

1200

2030

63

1180 - 1200

-

2030

68

1280 - 1300

-

1400

2030

73

1380 - 1400

-

710 - 1200

38

39

H

2

0

3

0
