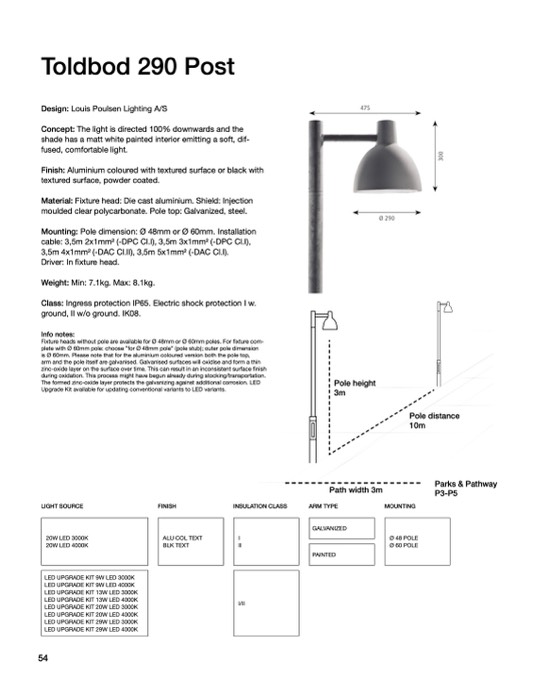

Toldbod 290 Post

Design: Louis Poulsen Lighting A/S

Concept: The light is directed 100% downwards and the

shade has a matt white painted interior emitting a soft, dif-

fused, comfortable light.

Finish: Aluminium coloured with textured surface or black with

textured surface, powder coated.

Material: Fixture head: Die cast aluminium. Shield: Injection

moulded clear polycarbonate. Pole top: Galvanized, steel.

Mounting: Pole dimension: Ø 48mm or Ø 60mm. Installation

cable: 3,5m 2x1mm2 (-DPC Cl.I), 3,5m 3x1mm2 (-DPC Cl.I),

3,5m 4x1mm2 (-DAC Cl.II), 3,5m 5x1mm2 (-DAC Cl.I).

Driver: In fixture head.

Weight: Min: 7.1kg. Max: 8.1kg.

Class: Ingress protection IP65. Electric shock protection I w.

ground, II w/o ground. IK08.

Info notes:

Fixture heads without pole are available for Ø 48mm or Ø 60mm poles. For fixture com-

plete with Ø 60mm pole: choose ”for Ø 48mm pole” (pole stub); outer pole dimension

is Ø 60mm. Please note that for the aluminium coloured version both the pole top,

arm and the pole itself are galvanised. Galvanised surfaces will oxidise and form a thin

zinc-oxide layer on the surface over time. This can result in an inconsistent surface finish

during oxidation. This process might have begun already during stocking/transportation.

The formed zinc-oxide layer protects the galvanizing against additional corrosion. LED

Upgrade Kit available for updating conventional variants to LED variants.

Pole height

3m

Path width 3m

ARM TYPE

Pole distance

10m

Parks & Pathway

P3-P5

LIGHT SOURCE

FINISH

INSULATION CLASS

MOUNTING

54

20W LED 3000K

20W LED 4000K

ALU COL TEXT

BLK TEXT

I

II

GALVANIZED

Ø 48 POLE

Ø 60 POLE

PAINTED

LED UPGRADE KIT 9W LED 3000K

LED UPGRADE KIT 9W LED 4000K

LED UPGRADE KIT 13W LED 3000K

LED UPGRADE KIT 13W LED 4000K

LED UPGRADE KIT 20W LED 3000K

LED UPGRADE KIT 20W LED 4000K

LED UPGRADE KIT 29W LED 3000K

LED UPGRADE KIT 29W LED 4000K

I/II
