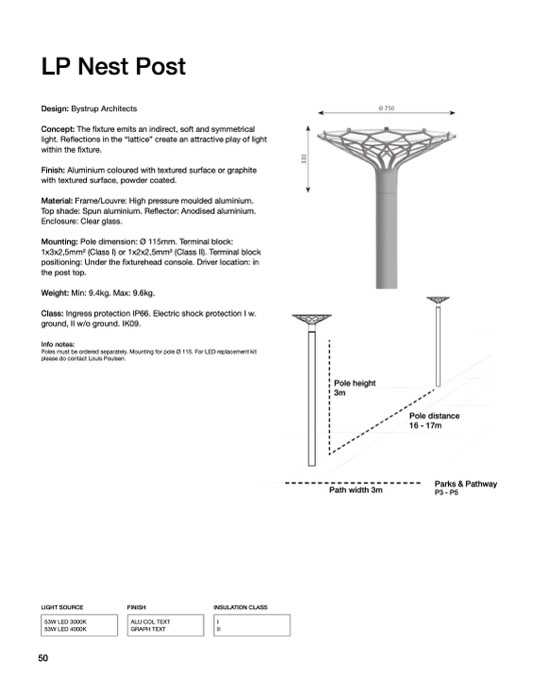

LP Nest Post

Design: Bystrup Architects

Concept: The fixture emits an indirect, soft and symmetrical

light. Reflections in the “lattice” create an attractive play of light

within the fixture.

Finish: Aluminium coloured with textured surface or graphite

with textured surface, powder coated.

Material: Frame/Louvre: High pressure moulded aluminium.

Top shade: Spun aluminium. Reflector: Anodised aluminium.

Enclosure: Clear glass.

Mounting: Pole dimension: Ø 115mm. Terminal block:

1x3x2,5mm2 (Class I) or 1x2x2,5mm2 (Class II). Terminal block

positioning: Under the fixturehead console. Driver location: in

the post top.

Weight: Min: 9.4kg. Max: 9.6kg.

Class: Ingress protection IP66. Electric shock protection I w.

ground, II w/o ground. IK09.

Info notes:

Poles must be ordered separately. Mounting for pole Ø 115. For LED replacement kit

please do contact Louis Poulsen.

LIGHT SOURCE

53W LED 3000K

53W LED 4000K

FINISH

ALU COL TEXT

GRAPH TEXT

INSULATION CLASS

I

II

50

Pole height

3m

Path width 3m

Pole distance

16 - 17m

Parks & Pathway

P3 - P5
