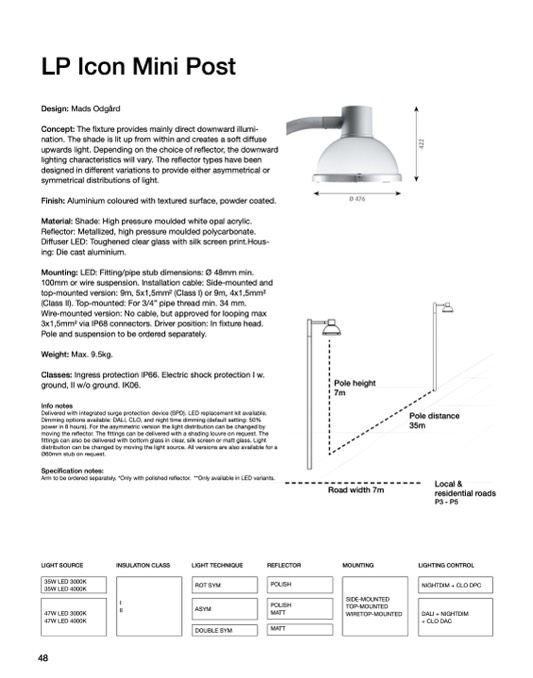

LP Icon Mini Post

Design: Mads Odgård

Concept: The fixture provides mainly direct downward illumi-

nation. The shade is lit up from within and creates a soft diffuse

upwards light. Depending on the choice of reflector, the downward

lighting characteristics will vary. The reflector types have been

designed in different variations to provide either asymmetrical or

symmetrical distributions of light.

Finish: Aluminium coloured with textured surface, powder coated.

Material: Shade: High pressure moulded white opal acrylic.

Reflector: Metallized, high pressure moulded polycarbonate.

Diffuser LED: Toughened clear glass with silk screen print.Hous-

ing: Die cast aluminium.

Mounting: LED: Fitting/pipe stub dimensions: Ø 48mm min.

100mm or wire suspension. Installation cable: Side-mounted and

top-mounted version: 9m, 5x1,5mm2 (Class I) or 9m, 4x1,5mm2

(Class II). Top-mounted: For 3/4” pipe thread min. 34 mm.

Wire-mounted version: No cable, but approved for looping max

3x1,5mm2 via IP68 connectors. Driver position: In fixture head.

Pole and suspension to be ordered separately.

Weight: Max. 9.5kg.

Classes: Ingress protection IP66. Electric shock protection I w.

ground, II w/o ground. IK06.

Info notes

Delivered with integrated surge protection device (SPD). LED replacement kit available.

Dimming options available: DALI, CLO, and night time dimming (default setting: 50%

power in 8 hours). For the asymmetric version the light distribution can be changed by

moving the reflector. The fittings can be delivered with a shading louvre on request. The

fittings can also be delivered with bottom glass in clear, silk screen or matt glass. Light

distribution can be changed by moving the light source. All versions are also available for a

Ø60mm stub on request.

Specification notes:

Arm to be ordered separately. *Only with polished reflector. **Only available in LED variants.

Pole height

7m

Road width 7m

MOUNTING

Pole distance

35m

Local &

residential roads

P3 - P5

LIGHTING CONTROL

LIGHT SOURCE

INSULATION CLASS

LIGHT TECHNIQUE

REFLECTOR

48

35W LED 3000K

35W LED 4000K

I

II

ROT SYM

POLISH

SIDE-MOUNTED

TOP-MOUNTED

WIRETOP-MOUNTED

NIGHTDIM + CLO DPC

47W LED 3000K

47W LED 4000K

ASYM

POLISH

MATT

DALI + NIGHTDIM

+ CLO DAC

DOUBLE SYM

MATT
