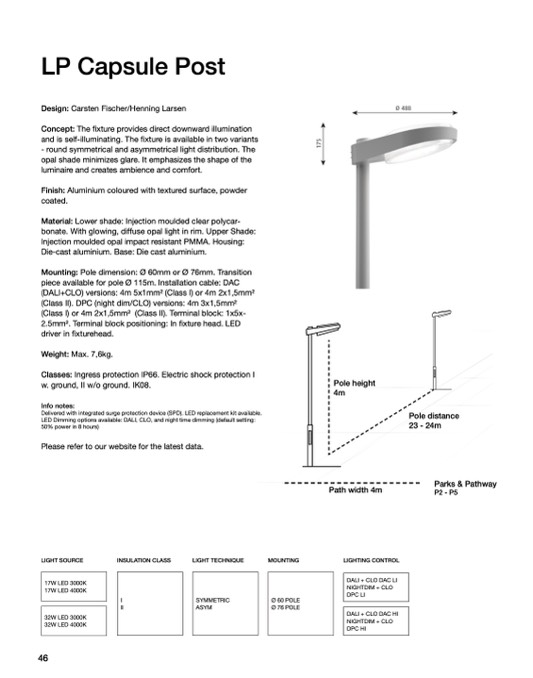

LP Capsule Post

Design: Carsten Fischer/Henning Larsen

Concept: The fixture provides direct downward illumination

and is self-illuminating. The fixture is available in two variants

- round symmetrical and asymmetrical light distribution. The

opal shade minimizes glare. It emphasizes the shape of the

luminaire and creates ambience and comfort.

Finish: Aluminium coloured with textured surface, powder

coated.

Material: Lower shade: Injection moulded clear polycar-

bonate. With glowing, diffuse opal light in rim. Upper Shade:

Injection moulded opal impact resistant PMMA. Housing:

Die-cast aluminium. Base: Die cast aluminium.

Mounting: Pole dimension: Ø 60mm or Ø 76mm. Transition

piece available for pole Ø 115m. Installation cable: DAC

(DALI+CLO) versions: 4m 5x1mm2 (Class I) or 4m 2x1,5mm2

(Class II). DPC (night dim/CLO) versions: 4m 3x1,5mm2

(Class I) or 4m 2x1,5mm2 (Class II). Terminal block: 1x5x-

2.5mm2. Terminal block positioning: In fixture head. LED

driver in fixturehead.

Weight: Max. 7,6kg.

Classes: Ingress protection IP66. Electric shock protection I

w. ground, II w/o ground. IK08.

Info notes:

Delivered with integrated surge protection device (SPD). LED replacement kit available.

LED Dimming options available: DALI, CLO, and night time dimming (default setting:

50% power in 8 hours)

Please refer to our website for the latest data.

488

Pole height

4m

Path width 4m

LIGHTING CONTROL

488

Pole distance

23 - 24m

Parks & Pathway

P2 - P5

LIGHT SOURCE

INSULATION CLASS

LIGHT TECHNIQUE

MOUNTING

46

17W LED 3000K

17W LED 4000K

I

II

SYMMETRIC

ASYM

Ø 60 POLE

Ø 76 POLE

DALI + CLO DAC LI

NIGHTDIM + CLO

DPC LI

32W LED 3000K

32W LED 4000K

DALI + CLO DAC HI

NIGHTDIM + CLO

DPC HI
