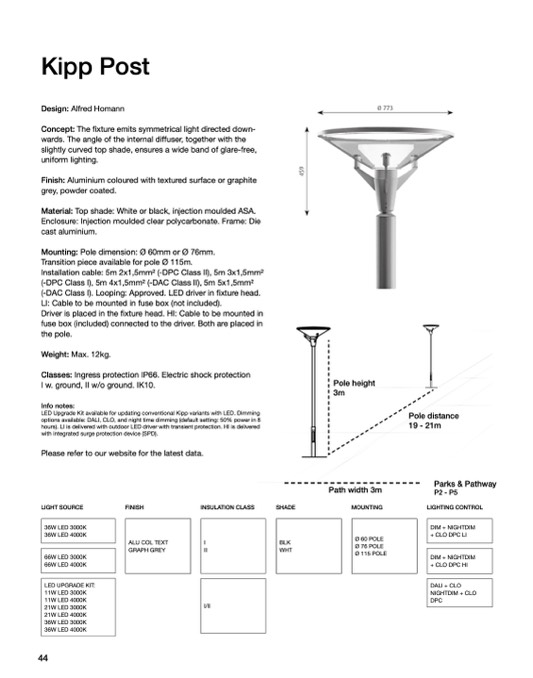

Kipp Post

Design: Alfred Homann

Concept: The fixture emits symmetrical light directed down-

wards. The angle of the internal diffuser, together with the

slightly curved top shade, ensures a wide band of glare-free,

uniform lighting.

Finish: Aluminium coloured with textured surface or graphite

grey, powder coated.

Material: Top shade: White or black, injection moulded ASA.

Enclosure: Injection moulded clear polycarbonate. Frame: Die

cast aluminium.

Mounting: Pole dimension: Ø 60mm or Ø 76mm.

Transition piece available for pole Ø 115m.

Installation cable: 5m 2x1,5mm2 (-DPC Class II), 5m 3x1,5mm2

(-DPC Class I), 5m 4x1,5mm2 (-DAC Class II), 5m 5x1,5mm2

(-DAC Class I). Looping: Approved. LED driver in fixture head.

LI: Cable to be mounted in fuse box (not included).

Driver is placed in the fixture head. HI: Cable to be mounted in

fuse box (included) connected to the driver. Both are placed in

the pole.

Weight: Max. 12kg.

Classes: Ingress protection IP66. Electric shock protection

I w. ground, II w/o ground. IK10.

Info notes:

LED Upgrade Kit available for updating conventional Kipp variants with LED. Dimming

options available: DALI, CLO, and night time dimming (default setting: 50% power in 8

hours). LI is delivered with outdoor LED driver with transient protection. HI is delivered

with integrated surge protection device (SPD).

Please refer to our website for the latest data.

LIGHT SOURCE

FINISH

INSULATION CLASS

SHADE

Pole height

3m

Path width 3m

MOUNTING

Pole distance

19 - 21m

Parks & Pathway

P2 - P5

LIGHTING CONTROL

36W LED 3000K

36W LED 4000K

ALU COL TEXT

GRAPH GREY

I

II

BLK

WHT

Ø 60 POLE

Ø 76 POLE

Ø 115 POLE

DIM + NIGHTDIM

+ CLO DPC LI

66W LED 3000K

66W LED 4000K

DIM + NIGHTDIM

+ CLO DPC HI

LED UPGRADE KIT:

11W LED 3000K

11W LED 4000K

21W LED 3000K

21W LED 4000K

36W LED 3000K

36W LED 4000K

44

I/II

DALI + CLO

NIGHTDIM + CLO

DPC
