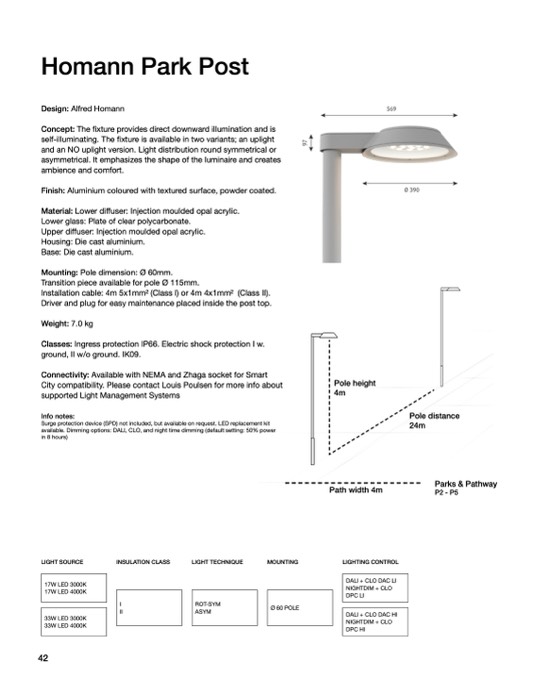

Homann Park Post

Design: Alfred Homann

Concept: The fixture provides direct downward illumination and is

self-illuminating. The fixture is available in two variants; an uplight

and an NO uplight version. Light distribution round symmetrical or

asymmetrical. It emphasizes the shape of the luminaire and creates

ambience and comfort.

Finish: Aluminium coloured with textured surface, powder coated.

Material: Lower diffuser: Injection moulded opal acrylic.

Lower glass: Plate of clear polycarbonate.

Upper diffuser: Injection moulded opal acrylic.

Housing: Die cast aluminium.

Base: Die cast aluminium.

Mounting: Pole dimension: Ø 60mm.

Transition piece available for pole Ø 115mm.

Installation cable: 4m 5x1mm2 (Class I) or 4m 4x1mm2 (Class II).

Driver and plug for easy maintenance placed inside the post top.

Weight: 7.0 kg

Classes: Ingress protection IP66. Electric shock protection I w.

ground, II w/o ground. IK09.

Connectivity: Available with NEMA and Zhaga socket for Smart

City compatibility. Please contact Louis Poulsen for more info about

supported Light Management Systems

Info notes:

Surge protection device (SPD) not included, but available on request. LED replacement kit

available. Dimming options: DALI, CLO, and night time dimming (default setting: 50% power

in 8 hours)

Pole height

4m

Path width 4m

LIGHTING CONTROL

Pole distance

24m

Parks & Pathway

P2 - P5

LIGHT SOURCE

INSULATION CLASS

LIGHT TECHNIQUE

MOUNTING

17W LED 3000K

17W LED 4000K

DALI + CLO DAC LI

NIGHTDIM + CLO

DPC LI

I

II

ROT-SYM

ASYM

Ø 60 POLE

33W LED 3000K

33W LED 4000K

DALI + CLO DAC HI

NIGHTDIM + CLO

DPC HI

42
