Louis Poulsen - City light

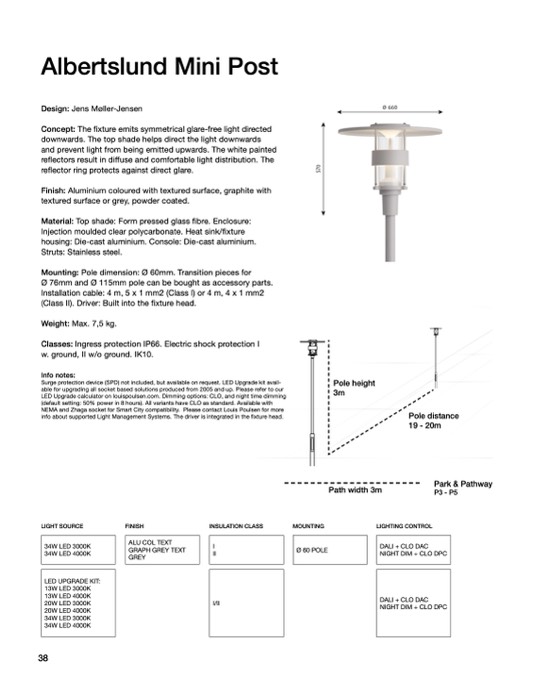

Albertslund Mini Post

Design: Jens Møller-Jensen

Concept: The fixture emits symmetrical glare-free light directed

downwards. The top shade helps direct the light downwards

and prevent light from being emitted upwards. The white painted

reflectors result in diffuse and comfortable light distribution. The

reflector ring protects against direct glare.

Finish: Aluminium coloured with textured surface, graphite with

textured surface or grey, powder coated.

Material: Top shade: Form pressed glass fibre. Enclosure:

Injection moulded clear polycarbonate. Heat sink/fixture

housing: Die-cast aluminium. Console: Die-cast aluminium.

Struts: Stainless steel.

Mounting: Pole dimension: Ø 60mm. Transition pieces for

Ø 76mm and Ø 115mm pole can be bought as accessory parts.

Installation cable: 4 m, 5 x 1 mm2 (Class I) or 4 m, 4 x 1 mm2

(Class II). Driver: Built into the fixture head.

Weight: Max. 7,5 kg.

Classes: Ingress protection IP66. Electric shock protection I

w. ground, II w/o ground. IK10.

Info notes:

Surge protection device (SPD) not included, but available on request. LED Upgrade kit avail-

able for upgrading all socket based solutions produced from 2005 and up. Please refer to our

LED Upgrade calculator on louispoulsen.com. Dimming options: CLO, and night time dimming

(default setting: 50% power in 8 hours). All variants have CLO as standard. Available with

NEMA and Zhaga socket for Smart City compatibility. Please contact Louis Poulsen for more

info about supported Light Management Systems. The driver is integrated in the fixture head.

Ø 880

Pole height

Path width 3m

Pole distance

19 - 20m

Park & Pathway

P3 - P5

LIGHT SOURCE

FINISH

INSULATION CLASS

MOUNTING

LIGHTING CONTROL

34W LED 3000K

34W LED 4000K

ALU COL TEXT

GRAPH GREY TEXT

GREY

Ø 60 POLE

DALI + CLO DAC

NIGHT DIM + CLO DPC

LED UPGRADE KIT:

13W LED 3000K

13W LED 4000K

20W LED 3000K

20W LED 4000K

34W LED 3000K

34W LED 4000K

I/II

DALI + CLO DAC

NIGHT DIM + CLO DPC
