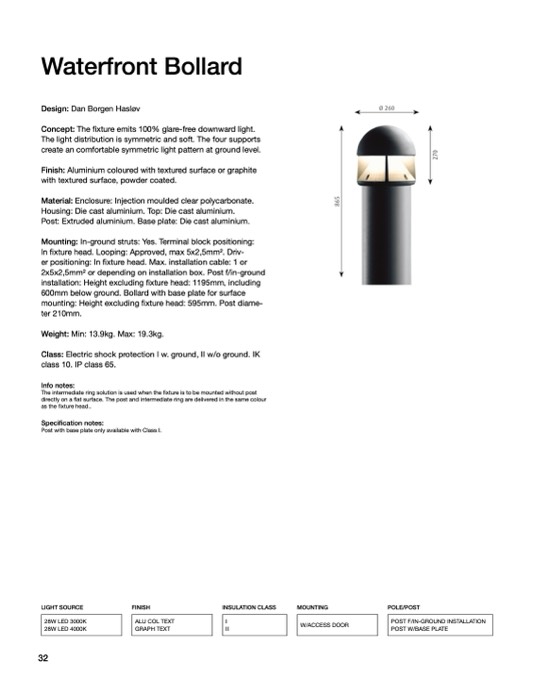

Waterfront Bollard

Design: Dan Borgen Hasløv

Concept: The fixture emits 100% glare-free downward light.

The light distribution is symmetric and soft. The four supports

create an comfortable symmetric light pattern at ground level.

Finish: Aluminium coloured with textured surface or graphite

with textured surface, powder coated.

Material: Enclosure: Injection moulded clear polycarbonate.

Housing: Die cast aluminium. Top: Die cast aluminium.

Post: Extruded aluminium. Base plate: Die cast aluminium.

Mounting: In-ground struts: Yes. Terminal block positioning:

In fixture head. Looping: Approved, max 5x2,5mm2. Driv-

er positioning: In fixture head. Max. installation cable: 1 or

2x5x2,5mm2 or depending on installation box. Post f/in-ground

installation: Height excluding fixture head: 1195mm, including

600mm below ground. Bollard with base plate for surface

mounting: Height excluding fixture head: 595mm. Post diame-

ter 210mm.

Weight: Min: 13.9kg. Max: 19.3kg.

Class: Electric shock protection I w. ground, II w/o ground. IK

class 10. IP class 65.

Info notes:

The intermediate ring solution is used when the fixture is to be mounted without post

directly on a flat surface. The post and intermediate ring are delivered in the same colour

as the fixture head..

Specification notes:

Post with base plate only available with Class I.

LIGHT SOURCE

FINISH

INSULATION CLASS

MOUNTING

POLE/POST

32

28W LED 3000K

28W LED 4000K

ALU COL TEXT

GRAPH TEXT

I

II

W/ACCESS DOOR

POST F/IN-GROUND INSTALLATION

POST W/BASE PLATE
