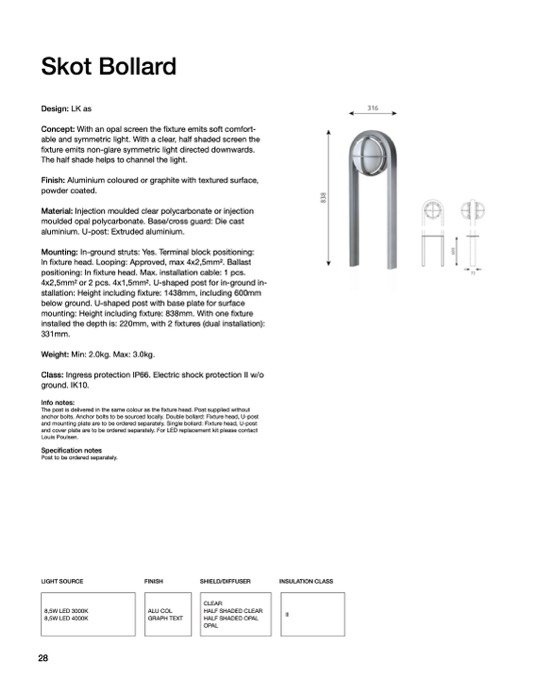

Skot Bollard

Design: LK as

Concept: With an opal screen the fixture emits soft comfort-

able and symmetric light. With a clear, half shaded screen the

fixture emits non-glare symmetric light directed downwards.

The half shade helps to channel the light.

Finish: Aluminium coloured or graphite with textured surface,

powder coated.

Material: Injection moulded clear polycarbonate or injection

moulded opal polycarbonate. Base/cross guard: Die cast

aluminium. U-post: Extruded aluminium.

Mounting: In-ground struts: Yes. Terminal block positioning:

In fixture head. Looping: Approved, max 4x2,5mm2. Ballast

positioning: In fixture head. Max. installation cable: 1 pcs.

4x2,5mm2 or 2 pcs. 4x1,5mm2. U-shaped post for in-ground in-

stallation: Height including fixture: 1438mm, including 600mm

below ground. U-shaped post with base plate for surface

mounting: Height including fixture: 838mm. With one fixture

installed the depth is: 220mm, with 2 fixtures (dual installation):

331mm.

Weight: Min: 2.0kg. Max: 3.0kg.

Class: Ingress protection IP66. Electric shock protection II w/o

ground. IK10.

Info notes:

The post is delivered in the same colour as the fixture head. Post supplied without

anchor bolts. Anchor bolts to be sourced locally. Double bollard: Fixture head, U-post

and mounting plate are to be ordered separately. Single bollard: Fixture head, U-post

and cover plate are to be ordered separately. For LED replacement kit please contact

Louis Poulsen.

Specification notes

Post to be ordered separately.

LIGHT SOURCE

FINISH

SHIELD/DIFFUSER

INSULATION CLASS

28

8,5W LED 3000K

8,5W LED 4000K

ALU COL

GRAPH TEXT

CLEAR

HALF SHADED CLEAR

HALF SHADED OPAL

OPAL

II
