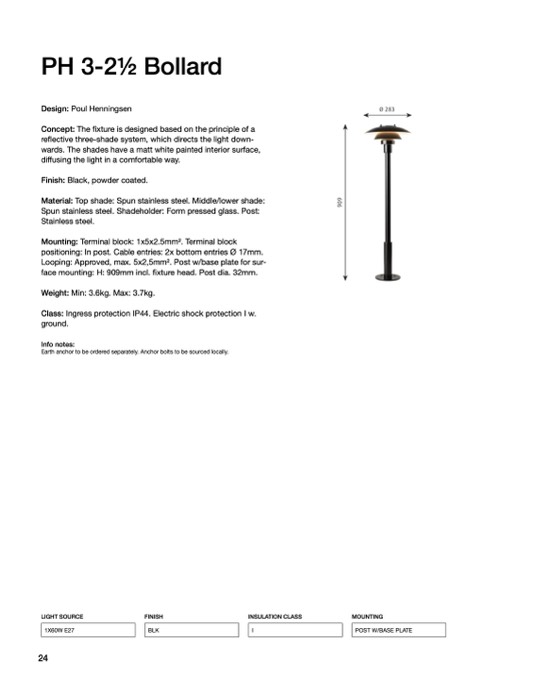

PH 3-21⁄2 Bollard

Design: Poul Henningsen

Concept: The fixture is designed based on the principle of a

reflective three-shade system, which directs the light down-

wards. The shades have a matt white painted interior surface,

diffusing the light in a comfortable way.

Finish: Black, powder coated.

Material: Top shade: Spun stainless steel. Middle/lower shade:

Spun stainless steel. Shadeholder: Form pressed glass. Post:

Stainless steel.

Mounting: Terminal block: 1x5x2.5mm2. Terminal block

positioning: In post. Cable entries: 2x bottom entries Ø 17mm.

Looping: Approved, max. 5x2,5mm2. Post w/base plate for sur-

face mounting: H: 909mm incl. fixture head. Post dia. 32mm.

Weight: Min: 3.6kg. Max: 3.7kg.

Class: Ingress protection IP44. Electric shock protection I w.

ground.

Info notes:

Earth anchor to be ordered separately. Anchor bolts to be sourced locally.

LIGHT SOURCE

FINISH

INSULATION CLASS

MOUNTING

24

1X60W E27

BLK

I

POST W/BASE PLATE
