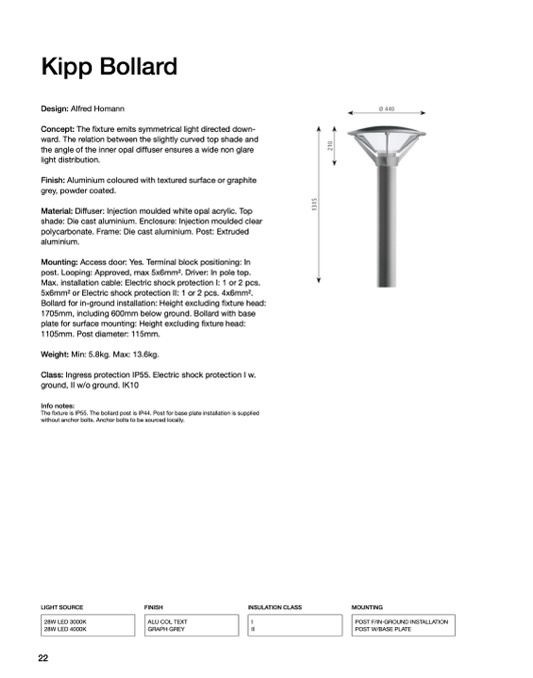

Kipp Bollard

Design: Alfred Homann

Concept: The fixture emits symmetrical light directed down-

ward. The relation between the slightly curved top shade and

the angle of the inner opal diffuser ensures a wide non glare

light distribution.

Finish: Aluminium coloured with textured surface or graphite

grey, powder coated.

Material: Diffuser: Injection moulded white opal acrylic. Top

shade: Die cast aluminium. Enclosure: Injection moulded clear

polycarbonate. Frame: Die cast aluminium. Post: Extruded

aluminium.

Mounting: Access door: Yes. Terminal block positioning: In

post. Looping: Approved, max 5x6mm2. Driver: In pole top.

Max. installation cable: Electric shock protection I: 1 or 2 pcs.

5x6mm2 or Electric shock protection II: 1 or 2 pcs. 4x6mm2.

Bollard for in-ground installation: Height excluding fixture head:

1705mm, including 600mm below ground. Bollard with base

plate for surface mounting: Height excluding fixture head:

1105mm. Post diameter: 115mm.

Weight: Min: 5.8kg. Max: 13.6kg.

Class: Ingress protection IP55. Electric shock protection I w.

ground, II w/o ground. IK10

Info notes:

The fixture is IP55. The bollard post is IP44. Post for base plate installation is supplied

without anchor bolts. Anchor bolts to be sourced locally.

LIGHT SOURCE

FINISH

INSULATION CLASS

MOUNTING

22

28W LED 3000K

28W LED 4000K

ALU COL TEXT

GRAPH GREY

I

II

POST F/IN-GROUND INSTALLATION

POST W/BASE PLATE
