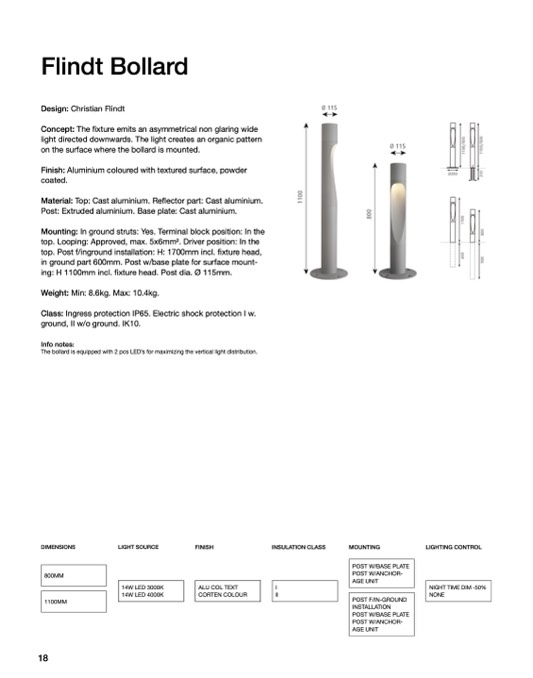

Flindt Bollard
Design: Christian Flindt
Concept: The fixture emits an asymmetrical non glaring wide
light directed downwards. The light creates an organic pattern
on the surface where the bollard is mounted.
Finish: Aluminium coloured with textured surface, powder
coated.
Material: Top: Cast aluminium. Reflector part: Cast aluminium.
Post: Extruded aluminium. Base plate: Cast aluminium.
Mounting: In ground struts: Yes. Terminal block position: In the
top. Looping: Approved, max. 5x6mm2. Driver position: In the
top. Post f/inground installation: H: 1700mm incl. fixture head,
in ground part 600mm. Post w/base plate for surface mount-
ing: H 1100mm incl. fixture head. Post dia. Ø 115mm.
Weight: Min: 8.6kg. Max: 10.4kg.
Class: Ingress protection IP65. Electric shock protection I w.
ground, II w/o ground. IK10.
Info notes:
The bollard is equipped with 2 pcs LED’s for maximizing the vertical light distribution.
DIMENSIONS
LIGHT SOURCE
FINISH
INSULATION CLASS
MOUNTING
LIGHTING CONTROL
POST W/BASE PLATE
POST W/ANCHOR-
AGE UNIT
800MM
14W LED 3000K
14W LED 4000K
ALU COL TEXT
CORTEN COLOUR
I
II
NIGHT TIME DIM -50%
NONE
1100MM
POST F/IN-GROUND
INSTALLATION
POST W/BASE PLATE
POST W/ANCHOR-
AGE UNIT
18
