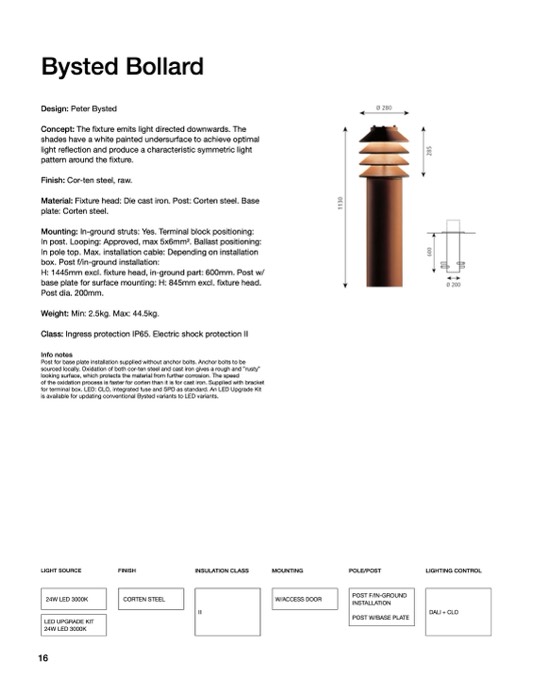

Bysted Bollard

Design: Peter Bysted

Concept: The fixture emits light directed downwards. The

shades have a white painted undersurface to achieve optimal

light reflection and produce a characteristic symmetric light

pattern around the fixture.

Finish: Cor-ten steel, raw.

Material: Fixture head: Die cast iron. Post: Corten steel. Base

plate: Corten steel.

Mounting: In-ground struts: Yes. Terminal block positioning:

In post. Looping: Approved, max 5x6mm2. Ballast positioning:

In pole top. Max. installation cable: Depending on installation

box. Post f/in-ground installation:

H: 1445mm excl. fixture head, in-ground part: 600mm. Post w/

base plate for surface mounting: H: 845mm excl. fixture head.

Post dia. 200mm.

Weight: Min: 2.5kg. Max: 44.5kg.

Class: Ingress protection IP65. Electric shock protection II

Info notes

Post for base plate installation supplied without anchor bolts. Anchor bolts to be

sourced locally. Oxidation of both cor-ten steel and cast iron gives a rough and ”rusty”

looking surface, which protects the material from further corrosion. The speed

of the oxidation process is faster for corten than it is for cast iron. Supplied with bracket

for terminal box. LED: CLO, integrated fuse and SPD as standard. An LED Upgrade Kit

is available for updating conventional Bysted variants to LED variants.

LIGHT SOURCE

FINISH

INSULATION CLASS

MOUNTING

POLE/POST

LIGHTING CONTROL

16

24W LED 3000K

CORTEN STEEL

II

W/ACCESS DOOR

POST F/IN-GROUND

INSTALLATION

POST W/BASE PLATE

DALI + CLO

LED UPGRADE KIT

24W LED 3000K
