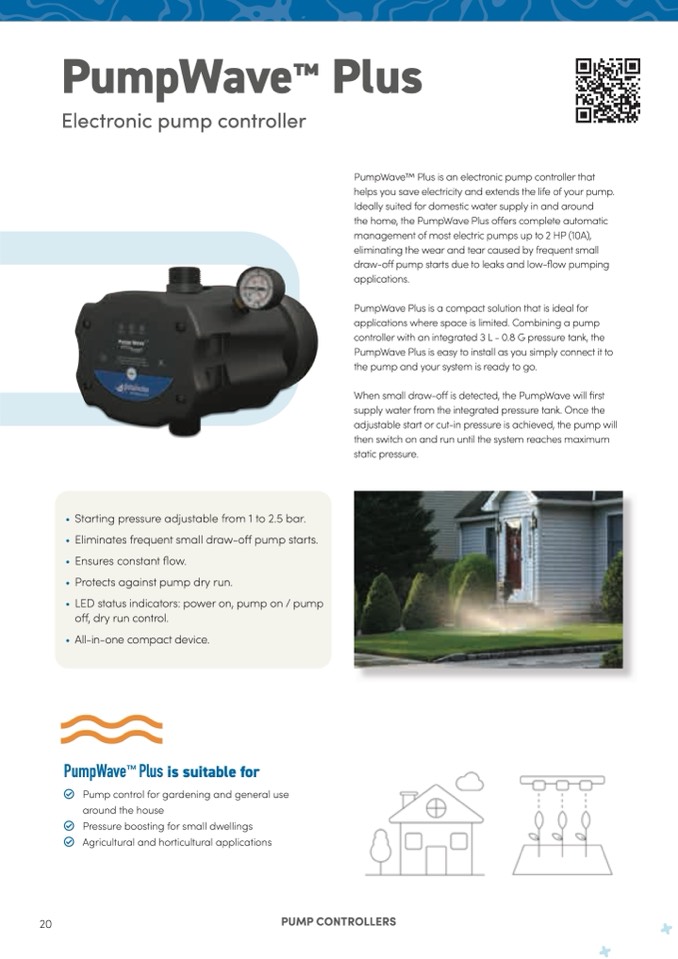

PumpWave

TM

Plus

Electronic pump controller

PumpWaveTM Plus is an electronic pump controller that

helps you save electricity and extends the life of your pump .

Ideally suited for domestic water supply in and around

the home, the PumpWave Plus offers complete automatic

management of most electric pumps up to 2 HP (10A),

eliminating the wear and tear caused by frequent small

draw-off pump starts due to leaks and low-flow pumping

applications .

PumpWave Plus is a compact solution that is ideal for

applications where space is limited . Combining a pump

controller with an integrated 3 L - 0 .8 G pressure tank, the

PumpWave Plus is easy to install as you simply connect it to

the pump and your system is ready to go .

When small draw-off is detected, the PumpWave will first

supply water from the integrated pressure tank . Once the

adjustable start or cut-in pressure is achieved, the pump will

then switch on and run until the system reaches maximum

static pressure .

• Starting pressure adjustable from 1 to 2 .5 bar .

• Eliminates frequent small draw-off pump starts .

• Ensures constant flow .

• Protects against pump dry run .

• LED status indicators: power on, pump on / pump

off, dry run control .

• All-in-one compact device .

PumpWave

TM

Plus is suitable for

L

Pump control for gardening and general use

around the house

L

Pressure boosting for small dwellings

L

Agricultural and horticultural applications

20

PUMP CONTROLLERS
