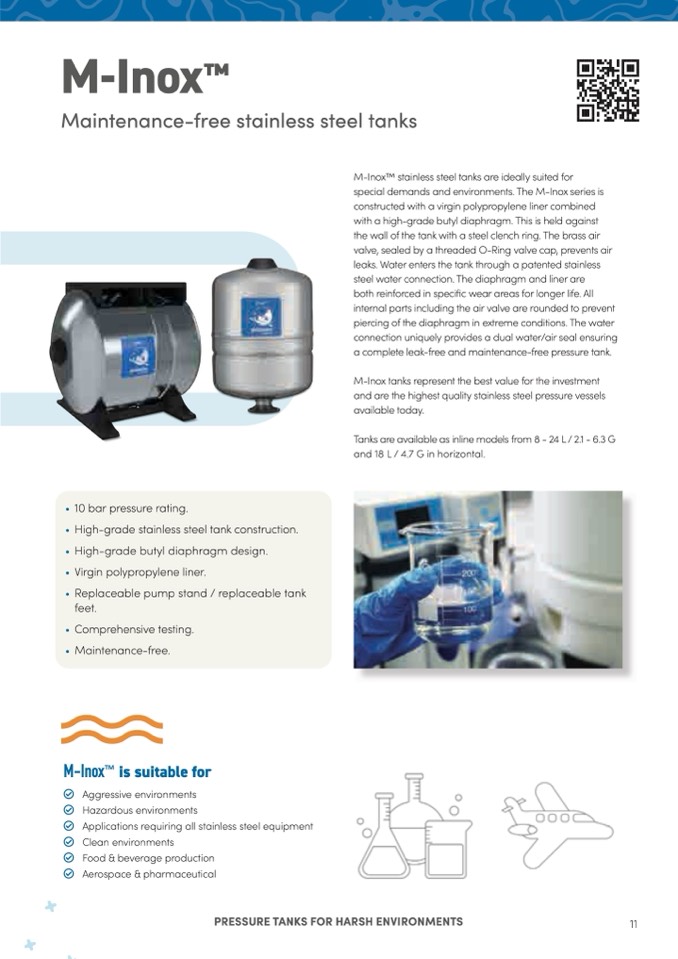

M-Inox

TM

Maintenance-free stainless steel tanks

• 10 bar pressure rating .

• High-grade stainless steel tank construction .

• High-grade butyl diaphragm design .

• Virgin polypropylene liner .

• Replaceable pump stand / replaceable tank

feet .

• Comprehensive testing .

• Maintenance-free .

M-Inox

TM

is suitable for

L

Aggressive environments

L

Hazardous environments

L

Applications requiring all stainless steel equipment

L

Clean environments

L

Food & beverage production

L

Aerospace & pharmaceutical

PRESSURE TANKS FOR HARSH ENVIRONMENTS

11

M-InoxTM stainless steel tanks are ideally suited for

special demands and environments . The M-Inox series is

constructed with a virgin polypropylene liner combined

with a high-grade butyl diaphragm . This is held against

the wall of the tank with a steel clench ring . The brass air

valve, sealed by a threaded O-Ring valve cap, prevents air

leaks . Water enters the tank through a patented stainless

steel water connection . The diaphragm and liner are

both reinforced in specific wear areas for longer life . All

internal parts including the air valve are rounded to prevent

piercing of the diaphragm in extreme conditions . The water

connection uniquely provides a dual water/air seal ensuring

a complete leak-free and maintenance-free pressure tank .

M-Inox tanks represent the best value for the investment

and are the highest quality stainless steel pressure vessels

available today .

Tanks are available as inline models from 8 - 24 L / 2 .1 - 6 .3 G

and 18 L / 4 .7 G in horizontal .
