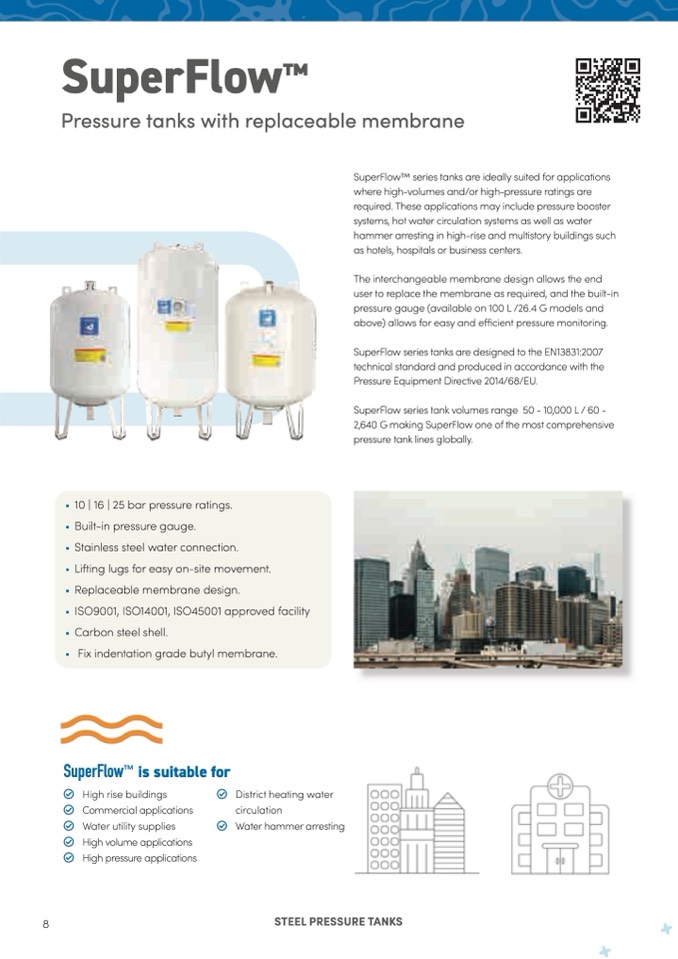

SuperFlow
TM
Pressure tanks with replaceable membrane
SuperFlowTM series tanks are ideally suited for applications
where high-volumes and/or high-pressure ratings are
required . These applications may include pressure booster
systems, hot water circulation systems as well as water
hammer arresting in high-rise and multistory buildings such
as hotels, hospitals or business centers .
The interchangeable membrane design allows the end
user to replace the membrane as required, and the built-in
pressure gauge (available on 100 L /26 .4 G models and
above) allows for easy and efficient pressure monitoring .
SuperFlow series tanks are designed to the EN13831:2007
technical standard and produced in accordance with the
Pressure Equipment Directive 2014/68/EU .
SuperFlow series tank volumes range 50 - 10,000 L / 60 -
2,640 G making SuperFlow one of the most comprehensive
pressure tank lines globally .
• 10 | 16 | 25 bar pressure ratings .
• Built-in pressure gauge .
• Stainless steel water connection .
• Lifting lugs for easy on-site movement .
• Replaceable membrane design .
• ISO9001, ISO14001, ISO45001 approved facility
• Carbon steel shell .
• Fix indentation grade butyl membrane .
SuperFlow
TM
is suitable for
8
STEEL PRESSURE TANKS
L
High rise buildings
L
Commercial applications
L
Water utility supplies
L
High volume applications
L
High pressure applications
L
District heating water
circulation
L
Water hammer arresting
