A

G

= 2.52 m2

C

i

= 0,35 Euro/kWh (valore in caso di 1 collettore solare per sola produzione ACS)

S

i

= (1x2,52) = 2,52 m2

Page 2/2

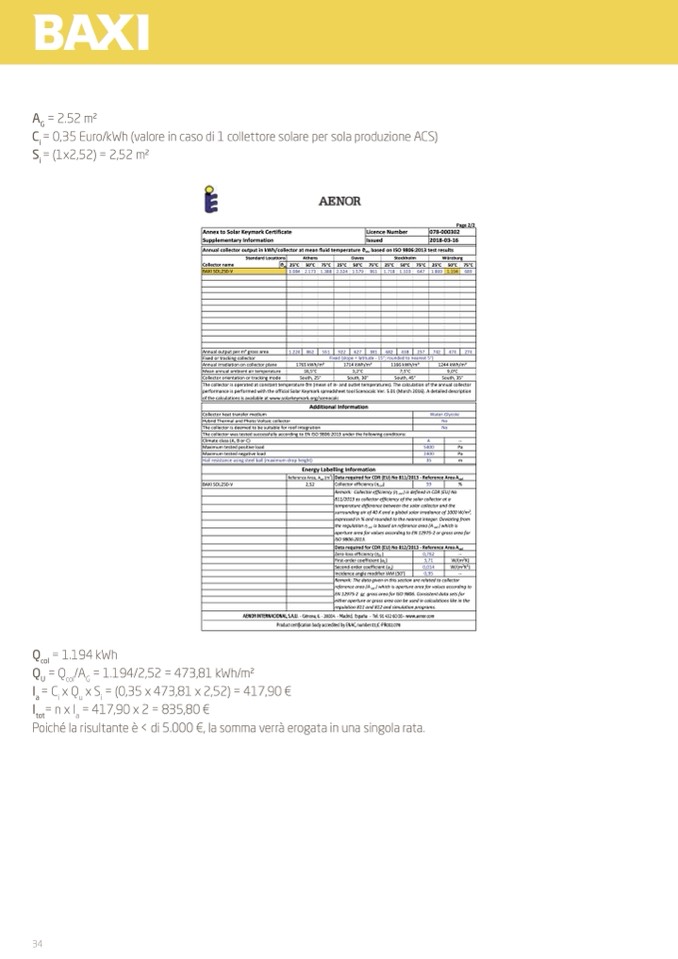

Annex to Solar Keymark Certificate

Supplementary Information

Licence Number

078-000302

Issued

2018-03-16

Annual collector output in kWh/collector at mean fluid temperature θ

m

, based on ISO 9806:2013 test results

Standard Locations

Athens

Davos

Stockholm

Würzburg

Collector name

θ

m

BAXI SOL250-V

25°C

3.084

50°C

2.173

75°C

1.388

25°C

2.324

50°C

1.579

75°C

961

25°C

1.718

50°C

1.103

75°C

647

25°C

1.869

50°C

1.194

75°C

689

Annual output per m2 gross area

1.224

862

551

922

627

381

682

438

257

742

474

274

Fixed or tracking collector

Fixed (slope = latitude - 15°; rounded to nearest 5°)

Annual irradiation on collector plane

1765 kWh/m2

1714 kWh/m2

1166 kWh/m2

1244 kWh/m2

Mean annual ambient air temperature

18,5°C

3,2°C

7,5°C

9,0°C

Collector orientation or tracking mode

South, 25°

South, 30°

South, 45°

South, 35°

The collector is operated at constant temperature θm (mean of in- and outlet temperatures). The calculation of the annual collector

performance is performed with the official Solar Keymark spreadsheet tool Scenocalc Ver. 5.01 (March 2016). A detailed description

of the calculations is available at www.solarkeymark.org/scenocalc

Additional Information

Collector heat transfer medium

Water-Glycole

Hybrid Thermal and Photo Voltaic collector

No

The collector is deemed to be suitable for roof integration

No

The collector was tested successfully according to EN ISO 9806:2013 under the following conditions:

Climate class (A, B or C)

A

--

Maximum tested positive load

5400

Pa

Maximum tested negative load

2400

Pa

Hail resistance using steel ball (maximum drop height)

35

m

Energy Labelling Information

Reference Area, A

sol

(m

2

) Data required for CDR (EU) No 811/2013 - Reference Area A

sol

BAXI SOL250-V

2,52

Collector efficiency (η

col

)

59

%

Remark: Collector efficiency (η

col

) is defined in CDR (EU) No

811/2013 as collector efficiency of the solar collector at a

temperature difference between the solar collector and the

surrounding air of 40 K and a global solar irradiance of 1000 W/m2,

expressed in % and rounded to the nearest integer. Deviating from

the regulation η

col

is based on reference area (A

sol

) which is

aperture area for values according to EN 12975-2 or gross area for

ISO 9806:2013.

Data required for CDR (EU) No 812/2013 - Reference Area A

sol

Zero-loss efficiency (η

0

)

First-order coefficient (a

1

)

Second-order coefficient (a

2

)

Incidence angle modifier IAM (50°)

Remark: The data given in this section are related to collector

reference area (A

sol

) which is aperture area for values according to

EN 12975-2 or gross area for ISO 9806. Consistent data sets for

either aperture or gross area can be used in calculations like in the

regulation 811 and 812 and simulation programs.

0,762

--

3,71

W/(m2K)

0,014

W/(m2K2)

0,95

--

AENOR INTERNACIONAL, S.A.U. - Génova, 6. - 28004 - Madrid, España - Tel. 91 432 60 00– www.aenor.com

Product certification body accredited by ENAC, number 01/C-PR002.078

Q

col

= 1.194 kWh

Q

U

= Q

col

/A

G

= 1.194/2,52 = 473,81 kWh/m2

I

a

= C

i

x Q

u

x S

i

= (0,35 x 473,81 x 2,52) = 417,90 €

I

tot

= n x I

a

= 417,90 x 2 = 835,80 €

Poiché la risultante è < di 5.000 €, la somma verrà erogata in una singola rata.
