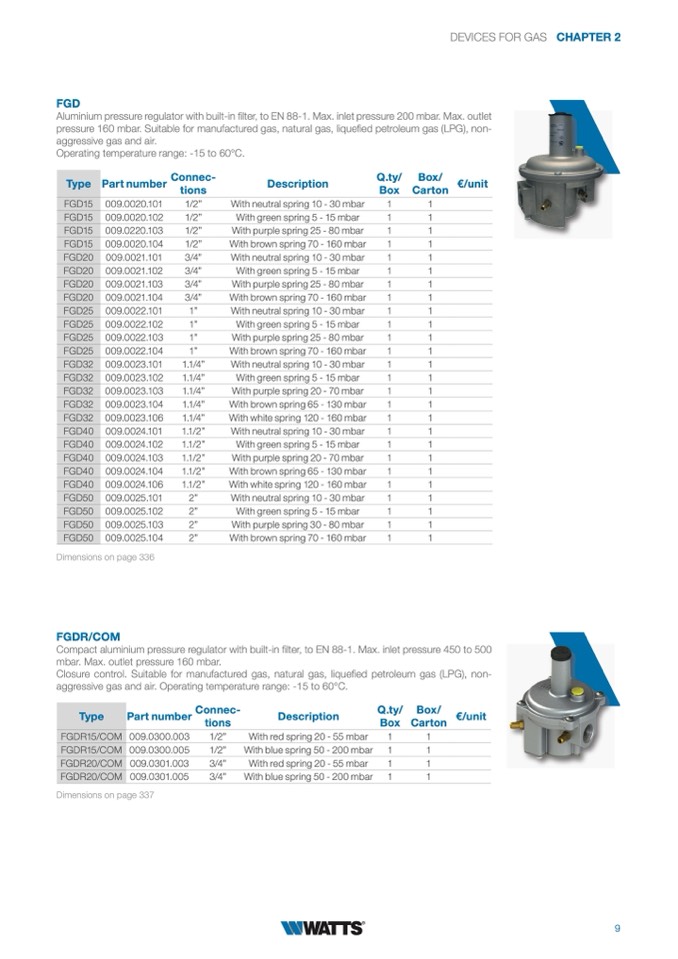

FGD

Aluminium pressure regulator with built-in filter, to EN 88-1. Max. inlet pressure 200 mbar. Max. outlet

pressure 160 mbar. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-

aggressive gas and air.

Operating temperature range: -15 to 60°C.

DEVICES FOR GAS

CHAPTER 2

Type

FGD15

FGD15

FGD15

FGD15

FGD20

FGD20

FGD20

FGD20

FGD25

FGD25

FGD25

FGD25

FGD32

FGD32

FGD32

FGD32

FGD32

FGD40

FGD40

FGD40

FGD40

FGD40

FGD50

FGD50

FGD50

FGD50

Part number

Connec-

tions

Description

With neutral spring 10 - 30 mbar

With green spring 5 - 15 mbar

With purple spring 25 - 80 mbar

With brown spring 70 - 160 mbar

With neutral spring 10 - 30 mbar

With green spring 5 - 15 mbar

With purple spring 25 - 80 mbar

With brown spring 70 - 160 mbar

With neutral spring 10 - 30 mbar

With green spring 5 - 15 mbar

With purple spring 25 - 80 mbar

With brown spring 70 - 160 mbar

With neutral spring 10 - 30 mbar

With green spring 5 - 15 mbar

With purple spring 20 - 70 mbar

With brown spring 65 - 130 mbar

With white spring 120 - 160 mbar

With neutral spring 10 - 30 mbar

With green spring 5 - 15 mbar

With purple spring 20 - 70 mbar

With brown spring 65 - 130 mbar

With white spring 120 - 160 mbar

With neutral spring 10 - 30 mbar

With green spring 5 - 15 mbar

With purple spring 30 - 80 mbar

With brown spring 70 - 160 mbar

Q.ty/ Box/

Box Carton

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

€/unit

009.0020.101

009.0020.102

009.0220.103

009.0020.104

009.0021.101

009.0021.102

009.0021.103

009.0021.104

009.0022.101

009.0022.102

009.0022.103

009.0022.104

009.0023.101

009.0023.102

009.0023.103

009.0023.104

009.0023.106

009.0024.101

009.0024.102

009.0024.103

009.0024.104

009.0024.106

009.0025.101

009.0025.102

009.0025.103

009.0025.104

Dimensions on page 336

FGDR/COM

1/2”

1/2”

1/2”

1/2”

3/4”

3/4”

3/4”

3/4”

1”

1”

1”

1”

1.1/4”

1.1/4”

1.1/4”

1.1/4”

1.1/4”

1.1/2”

1.1/2”

1.1/2”

1.1/2”

1.1/2”

2”

2”

2”

2”

Compact aluminium pressure regulator with built-in filter, to EN 88-1. Max. inlet pressure 450 to 500

mbar. Max. outlet pressure 160 mbar.

Closure control. Suitable for manufactured gas, natural gas, lique

fied petroleum gas (LPG), non-

aggressive gas and air. Operating temperature range: -15 to 60°C.

Type

FGDR15/COM

FGDR15/COM

FGDR20/COM

FGDR20/COM

Part number

Connec-

tions

Description

With red spring 20 - 55 mbar

With blue spring 50 - 200 mbar

With red spring 20 - 55 mbar

With blue spring 50 - 200 mbar

Q.ty/ Box/

Box Carton

1

1

1

1

1

1

1

1

€/unit

009.0300.003

009.0300.005

009.0301.003

009.0301.005

Dimensions on page 337

1/2”

1/2”

3/4”

3/4”
