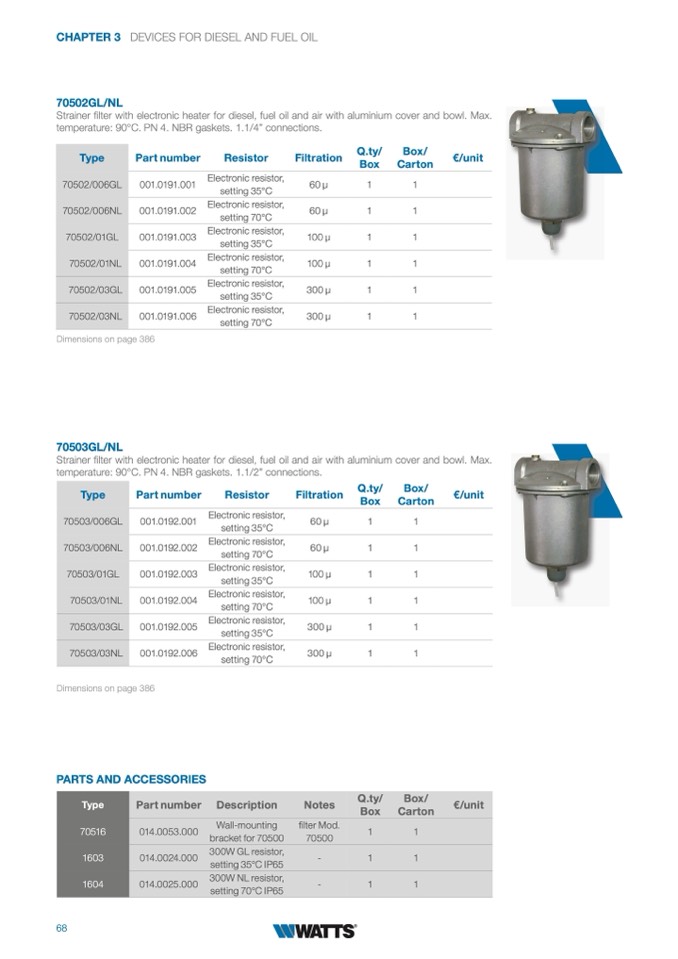

CHAPTER 3 DEVICES FOR DIESEL AND FUEL OIL

70502GL/NL

Strainer filter with electronic heater for diesel, fuel oil and air with aluminium cover and bowl. Max.

temperature: 90°C. PN 4. NBR gaskets. 1.1/4” connections.

Type

70502/006GL

70502/006NL

70502/01GL

70502/01NL

70502/03GL

70502/03NL

Part number

001.0191.001

001.0191.002

001.0191.003

001.0191.004

001.0191.005

001.0191.006

Dimensions on page 386

70503GL/NL

Resistor

Electronic resistor,

setting 35°C

Electronic resistor,

setting 70°C

Electronic resistor,

setting 35°C

Electronic resistor,

setting 70°C

Electronic resistor,

setting 35°C

Electronic resistor,

setting 70°C

Filtration

60 μ

60 μ

100μ

100μ

300 μ

300 μ

Q.ty/

Box/

Box

Carton

1

1

1

1

1

1

1

1

1

1

1

1

€/unit

Strainer filter with electronic heater for diesel, fuel oil and air with aluminium cover and bowl. Max.

temperature: 90°C. PN 4. NBR gaskets. 1.1/2” connections.

Type

70503/006GL

70503/006NL

70503/01GL

70503/01NL

70503/03GL

70503/03NL

Part number

001.0192.001

001.0192.002

001.0192.003

001.0192.004

001.0192.005

001.0192.006

Dimensions on page 386

PARTS AND ACCESSORIES

Resistor

Electronic resistor,

setting 35°C

Electronic resistor,

setting 70°C

Electronic resistor,

setting 35°C

Electronic resistor,

setting 70°C

Electronic resistor,

setting 35°C

Electronic resistor,

setting 70°C

Filtration

60 μ

60 μ

100μ

100μ

300 μ

300 μ

Q.ty/

Box/

Box

Carton

1

1

1

1

1

1

1

1

1

1

1

1

€/unit

Type

Part number

Description

Notes

Q.ty/

Box

Box/

Carton

€/unit

70516

014.0053.000

Wall-mounting

bracket for 70500

filter Mod.

70500

1

1

1603

014.0024.000

300W GL resistor,

setting 35°C IP65

-

1

1

1604

014.0025.000

300W NL resistor,

setting 70°C IP65

-

1

1

68
