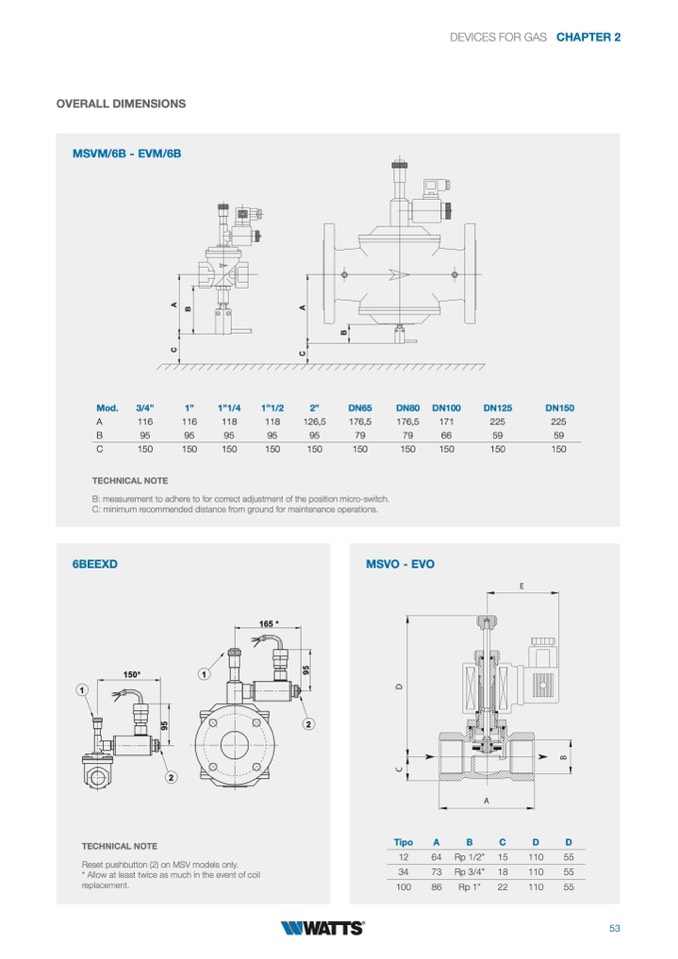

OVERALL DIMENSIONS
MSVM/6B - EVM/6B
Mod.
3/4”
1”
1”1/4
1”1/2
2”
DN65
DN80 DN100
DN125
DN150
A
116
116
118
118
126,5
176,5
176,5
171
225
225
B
95
95
95
95
95
79
79
66
59
59
C
150
150
150
150
150
150
150
150
150
150
TECHNICAL NOTE
B: measurement to adhere to for correct adjustment of the position micro-switch.
C: minimum recommended distance from ground for maintenance operations.
6BEEXD
150*
1
MSVO - EVO
TECHNICAL NOTE
Tipo
A
B
C
D
D
2
Reset pushbutton (2) on MSV models only.
* Allow at least twice as much in the event of coil
replacement.
12
64
34
73
100
86
Rp 1/2”
Rp 3/4”
Rp 1”
15
110
55
18
110
55
22
110
55
1
165 *
2
DEVICES FOR GAS CHAPTER 2
9
5
9
5
C
A
C
A
B
B
53
