CHAPTER 2 DEVICES FOR GAS

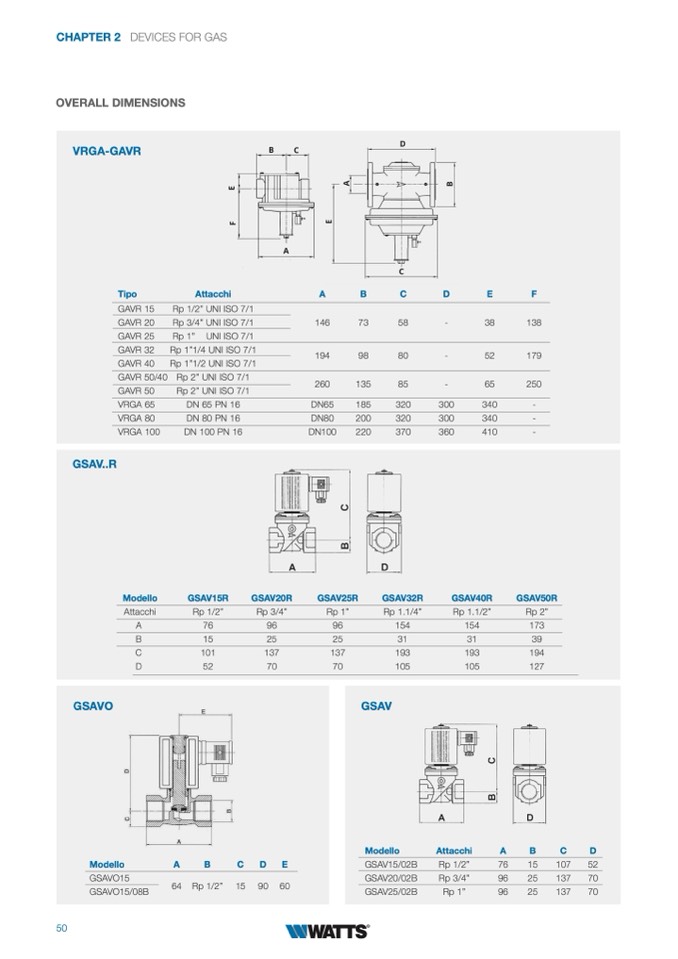

OVERALL DIMENSIONS
VRGA-GAVR
Tipo
Attacchi
A
B
C
D
E
F
GAVR 15
GAVR 20
GAVR 25
GAVR 32
GAVR 40
GAVR 50/40
GAVR 50
VRGA 65
VRGA 80
VRGA 100
Rp 1/2” UNI ISO 7/1
Rp 3/4” UNI ISO 7/1
Rp 1” UNI ISO 7/1
Rp 1”1/4 UNI ISO 7/1
Rp 1”1/2 UNI ISO 7/1
Rp 2” UNI ISO 7/1
Rp 2” UNI ISO 7/1
DN 65 PN 16
DN 80 PN 16
DN 100 PN 16
146
73
58
-
38
138
194
98
80
-
52
179
260
135
85
-
65
250
DN65
185
320
DN80
200
320
DN100
220
370
300
340
-
300
340
-
360
410
-
GSAV..R
Modello
GSAV15R
GSAV20R
GSAV25R
GSAV32R
GSAV40R
GSAV50R
Attacchi
Rp 1/2”
Rp 3/4”
Rp 1”
Rp 1.1/4”
Rp 1.1/2”
Rp 2”
A
76
96
96
154
154
173
B
15
25
25
31
31
39
C
101
137
137
193
193
194
D
52
70
70
105
105
127
GSAVO
Modello
A
B
C
D
E
GSAVO15
GSAVO15/08B
64 Rp 1/2” 15 90 60
GSAV
Modello
GSAV15/02B
GSAV20/02B
GSAV25/02B
Attacchi
Rp 1/2”
Rp 3/4”
Rp 1”
A
B
76
15
96
25
96
25
C
D
107
52
137
70
137
70
50
