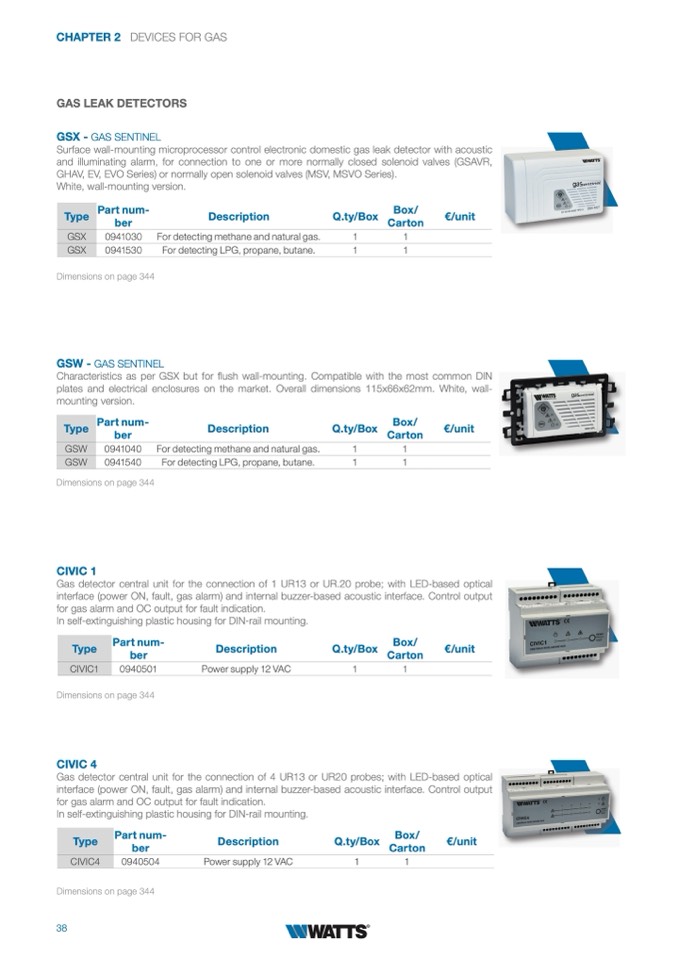

CHAPTER 2 DEVICES FOR GAS

GAS LEAK DETECTORS

GSX - GAS SENTINEL

Surface wall-mounting microprocessor control electronic domestic gas leak detector with acoustic

and illuminating alarm, for connection to one or more normally closed solenoid valves (GSAVR,

GHAV, EV, EVO Series) or normally open solenoid valves (MSV, MSVO Series).

White, wall-mounting version.

Type

GSX

GSX

Part num-

ber

0941030

0941530

Dimensions on page 344

Description

For detecting methane and natural gas.

For detecting LPG, propane, butane.

Q.ty/Box

Box/

Carton

1

1

1

1

€/unit

GSW - GAS SENTINEL

Characteristics as per GSX but for flush wall-mounting. Compatible with the most common DIN

plates and electrical enclosures on the market. Overall dimensions 115x66x62mm. White, wall-

mounting version.

Type

GSW

GSW

Part num-

ber

0941040

0941540

Dimensions on page 344

CIVIC 1

Description

For detecting methane and natural gas.

For detecting LPG, propane, butane.

Q.ty/Box

Box/

Carton

1

1

1

1

€/unit

Gas detector central unit for the connection of 1 UR13 or UR.20 probe; with LED-based optical

interface (power ON, fault, gas alarm) and internal buzzer-based acoustic interface. Control output

for gas alarm and OC output for fault indication.

In self-extinguishing plastic housing for DIN-rail mounting.

Type

CIVIC1

Part num-

ber

0940501

Dimensions on page 344

CIVIC 4

Description

Power supply 12 VAC

Q.ty/Box

Box/

€/unit

Carton

1

1

Gas detector central unit for the connection of 4 UR13 or UR20 probes; with LED-based optical

interface (power ON, fault, gas alarm) and internal buzzer-based acoustic interface. Control output

for gas alarm and OC output for fault indication.

In self-extinguishing plastic housing for DIN-rail mounting.

Type

CIVIC4

Part num-

ber

0940504

Dimensions on page 344

Description

Power supply 12 VAC

Q.ty/Box

Box/

€/unit

Carton

38

1

1
