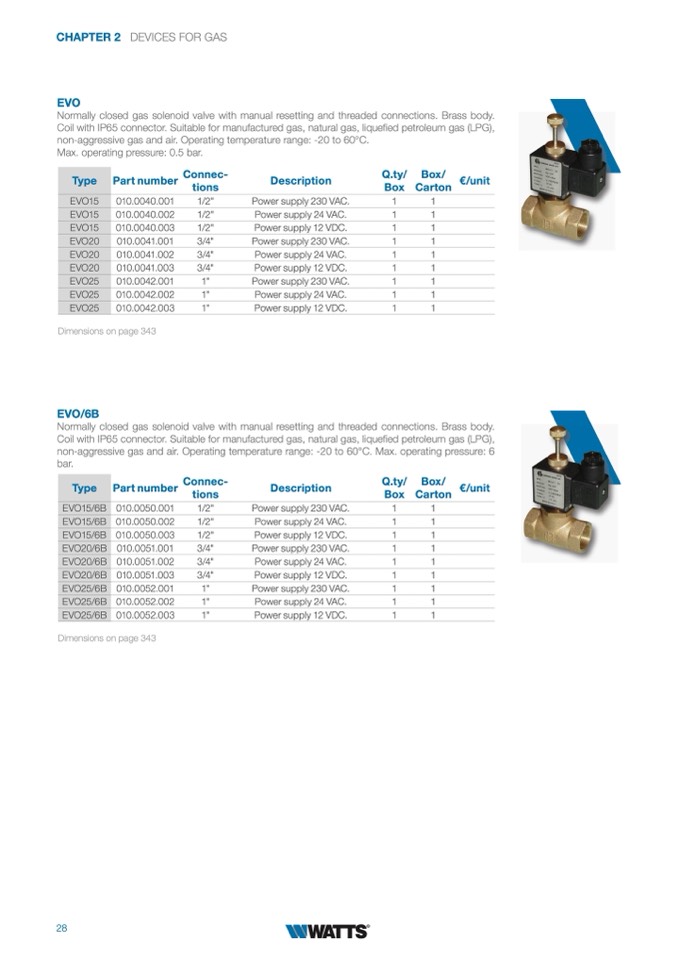

CHAPTER 2 DEVICES FOR GAS

EVO

Normally closed gas solenoid valve with manual resetting and threaded connections. Brass body.

Coil with IP65 connector. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG),

non-aggressive gas and air. Operating temperature range: -20 to 60°C.

Max. operating pressure: 0.5 bar.

Type

EVO15

EVO15

EVO15

EVO20

EVO20

EVO20

EVO25

EVO25

EVO25

Part number

Connec-

tions

Description

Power supply 230 VAC.

Power supply 24 VAC.

Power supply 12 VDC.

Power supply 230 VAC.

Power supply 24 VAC.

Power supply 12 VDC.

Power supply 230 VAC.

Power supply 24 VAC.

Power supply 12 VDC.

Q.ty/ Box/

Box Carton

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

€/unit

010.0040.001

010.0040.002

010.0040.003

010.0041.001

010.0041.002

010.0041.003

010.0042.001

010.0042.002

010.0042.003

Dimensions on page 343

EVO/6B

1/2"

1/2"

1/2"

3/4"

3/4"

3/4"

1"

1"

1"

Normally closed gas solenoid valve with manual resetting and threaded connections. Brass body.

Coil with IP65 connector. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG),

non-aggressive gas and air. Operating temperature range: -20 to 60°C. Max. operating pressure: 6

bar.

Type

EVO15/6B

EVO15/6B

EVO15/6B

EVO20/6B

EVO20/6B

EVO20/6B

EVO25/6B

EVO25/6B

EVO25/6B

Part number

Connec-

tions

Description

Power supply 230 VAC.

Power supply 24 VAC.

Power supply 12 VDC.

Power supply 230 VAC.

Power supply 24 VAC.

Power supply 12 VDC.

Power supply 230 VAC.

Power supply 24 VAC.

Power supply 12 VDC.

Q.ty/ Box/

Box Carton

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

€/unit

010.0050.001

010.0050.002

010.0050.003

010.0051.001

010.0051.002

010.0051.003

010.0052.001

010.0052.002

010.0052.003

Dimensions on page 343

1/2"

1/2"

1/2"

3/4"

3/4"

3/4"

1"

1"

1"

28
