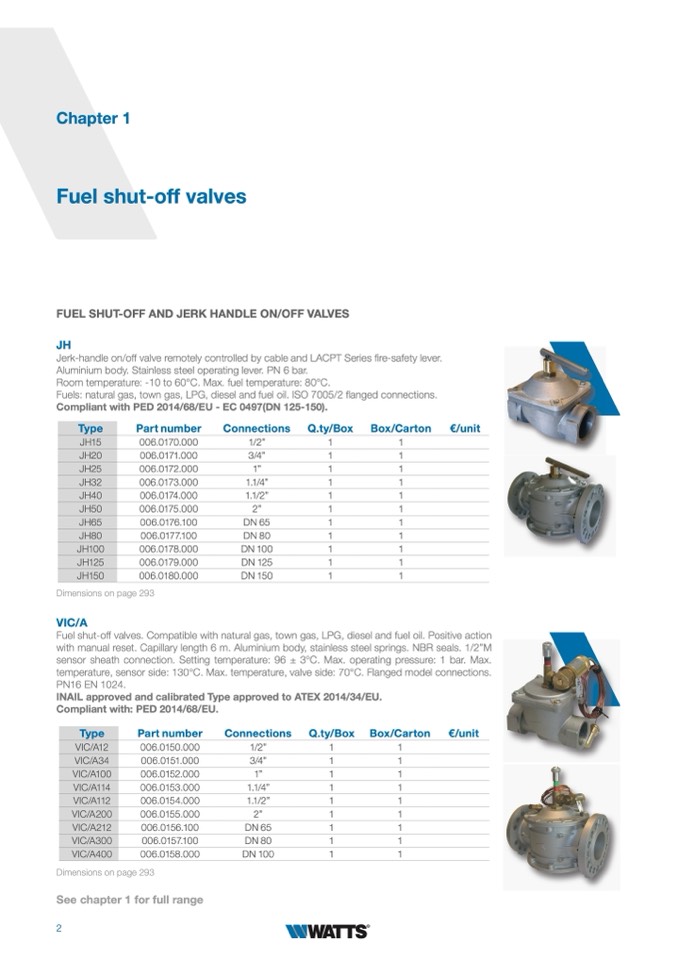

Chapter 1

Fuel shut-off valves

FUEL SHUT-OFF AND JERK HANDLE ON/OFF VALVES

JH

Jerk-handle on/off valve remotely controlled by cable and LACPT Series

fire-safety lever.

Aluminium body. Stainless steel operating lever. PN 6 bar.

Room temperature: -10 to 60°C. Max. fuel temperature: 80°C.

Fuels: natural gas, town gas, LPG, diesel and fuel oil. ISO 7005/2 flanged connections.

Compliant with PED 2014/68/EU - EC 0497(DN 125-150).

Type

JH15

JH20

JH25

JH32

JH40

JH50

JH65

JH80

JH100

JH125

JH150

Part number

006.0170.000

006.0171.000

006.0172.000

006.0173.000

006.0174.000

006.0175.000

006.0176.100

006.0177.100

006.0178.000

006.0179.000

006.0180.000

Dimensions on page 293

VIC/A

Connections

1/2”

3/4”

1”

1.1/4”

1.1/2”

2”

DN 65

DN 80

DN 100

DN 125

DN 150

Q.ty/Box

Box/Carton

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

€/unit

Fuel shut-off valves. Compatible with natural gas, town gas, LPG, diesel and fuel oil. Positive action

with manual reset. Capillary length 6 m. Aluminium body, stainless steel springs. NBR seals. 1/2”M

sensor sheath connection. Setting temperature: 96 ± 3°C. Max. operating pressure: 1 bar. Max.

temperature, sensor side: 130°C. Max. temperature, valve side: 70°C. Flanged model connections.

PN16 EN 1024.

INAIL approved and calibrated Type approved to ATEX 2014/34/EU.

Compliant with: PED 2014/68/EU.

Type

VIC/A12

VIC/A34

VIC/A100

VIC/A114

VIC/A112

VIC/A200

VIC/A212

VIC/A300

VIC/A400

Part number

Connections

006.0150.000

1/2”

006.0151.000

3/4”

006.0152.000

1”

006.0153.000

1.1/4”

006.0154.000

1.1/2”

006.0155.000

2”

Q.ty/Box Box/Carton

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

€/unit

006.0156.100

006.0157.100

006.0158.000

Dimensions on page 293

See chapter 1 for full range

DN 65

DN 80

DN 100

2
