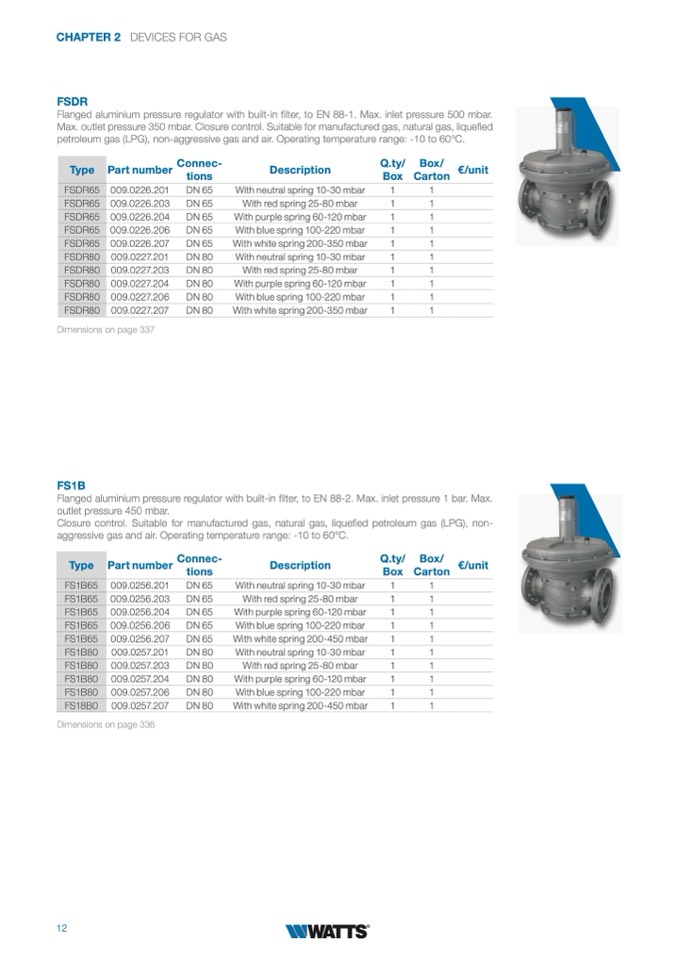

CHAPTER 2 DEVICES FOR GAS
FSDR
Flanged aluminium pressure regulator with built-in filter, to EN 88-1. Max. inlet pressure 500 mbar.
Max. outlet pressure 350 mbar. Closure control. Suitable for manufactured gas, natural gas, liquefied
petroleum gas (LPG), non-aggressive gas and air. Operating temperature range: -10 to 60°C.
Type
FSDR65
FSDR65
FSDR65
FSDR65
FSDR65
FSDR80
FSDR80
FSDR80
FSDR80
FSDR80
Part number
Connec-
tions
Description
With neutral spring 10-30 mbar
With red spring 25-80 mbar
With purple spring 60-120 mbar
With blue spring 100-220 mbar
With white spring 200-350 mbar
With neutral spring 10-30 mbar
With red spring 25-80 mbar
With purple spring 60-120 mbar
With blue spring 100-220 mbar
With white spring 200-350 mbar
Q.ty/ Box/
Box Carton
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
€/unit
009.0226.201
009.0226.203
009.0226.204
009.0226.206
009.0226.207
009.0227.201
009.0227.203
009.0227.204
009.0227.206
009.0227.207
Dimensions on page 337
DN 65
DN 65
DN 65
DN 65
DN 65
DN 80
DN 80
DN 80
DN 80
DN 80
FS1B
Flanged aluminium pressure regulator with built-in filter, to EN 88-2. Max. inlet pressure 1 bar. Max.
outlet pressure 450 mbar.
Closure control. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-
aggressive gas and air. Operating temperature range: -10 to 60°C.
Type
FS1B65
FS1B65
FS1B65
FS1B65
FS1B65
FS1B80
FS1B80
FS1B80
FS1B80
FS18B0
Part number
Connec-
tions
Description
With neutral spring 10-30 mbar
With red spring 25-80 mbar
With purple spring 60-120 mbar
With blue spring 100-220 mbar
With white spring 200-450 mbar
With neutral spring 10-30 mbar
With red spring 25-80 mbar
With purple spring 60-120 mbar
With blue spring 100-220 mbar
With white spring 200-450 mbar
Q.ty/ Box/
Box Carton
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
€/unit
009.0256.201
009.0256.203
009.0256.204
009.0256.206
009.0256.207
009.0257.201
009.0257.203
009.0257.204
009.0257.206
009.0257.207
Dimensions on page 336
DN 65
DN 65
DN 65
DN 65
DN 65
DN 80
DN 80
DN 80
DN 80
DN 80
