Gas Governors

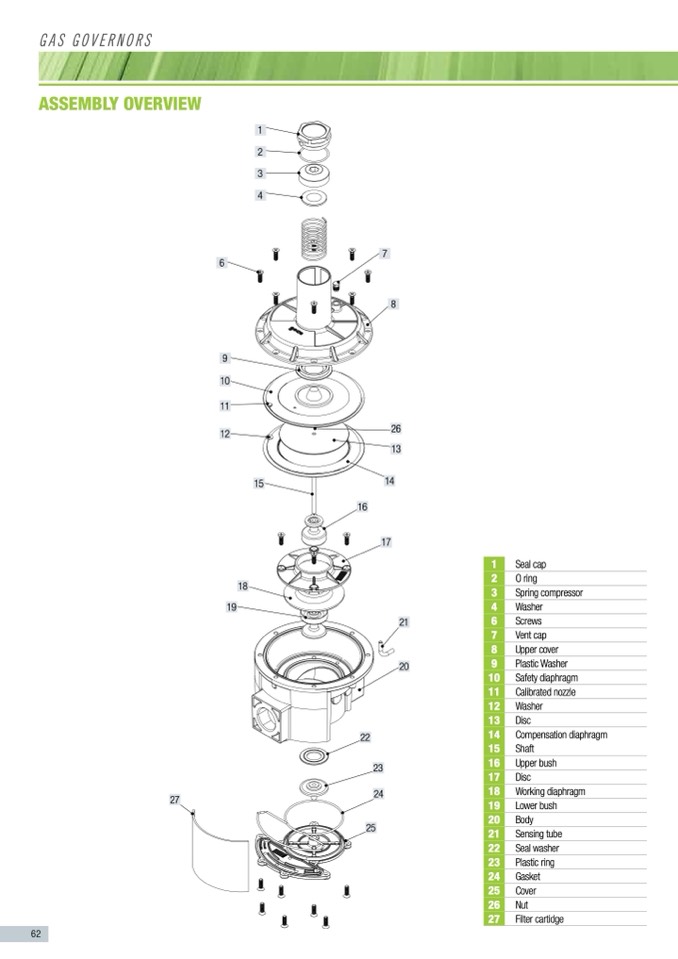

ASSEmbly OVERVIEw

27

22

23

24

25

6

7

8

26

13

14

16

17

9

10

11

12

15

18

1

Seal cap

2

Oring

3

Spring compressor

4

Washer

6

Screws

7

Vent cap

8

Upper cover

9

Plastic Washer

10 Safety diaphragm

11 Calibrated nozzle

12 Washer

13 Disc

14 Compensation diaphragm

15 Shaft

16 Upper bush

17 Disc

18 Working diaphragm

19 Lower bush

20 Body

21 Sensing tube

22 Seal washer

23 Plastic ring

24 Gasket

25 Cover

26 Nut

27 Filter cartidge

19

1

2

3

4

21

20
