code
Description
Dimension pmax
rG015-5b
TEcHnIcal fEaTurEs
working Temperature - 20 °C – + 60 °C
approval
UNI EN 88-2:2008 / PED / EAC
Diaphragms
NBR 60Sh – DvGW EN 549 - reinforced diaphragm
rG020-5b
rG025-5b
rGD25-5b
setting outlet
6 – 480 mbar – Standard spring supplied 10 – 27 mbar –
Other spring on request – Range as per below table
Inlet - outlet
Thread gas 1⁄2” , 3⁄4” 1” - ISO 228
connection
DN25-SlidingAluminium flangePN10
rG015-fT-5b
rG020-fT-5b
rG025-fT-5b
rGD25-fT-5b
rG015-5b-TpIo
rG020-5b-TpIo
rG025-5b-TpIo
rGD25-5b-TpIo
rG015-fT-5b-TpIo
rG020-fT-5b-TpIo
rG025-fT-5b-TpIo
rGD25-fT-5b-TpIo
spy1-12
spn1-12
spr1-12
spG1 -12
spbr1-12
Yellow
Neutral
Red
Green
Brown
6 - 22 mbar
10 - 27 mbar
28 - 70 mbar
70 - 280 mbar
220- 480 mbar
52
Gas Governors

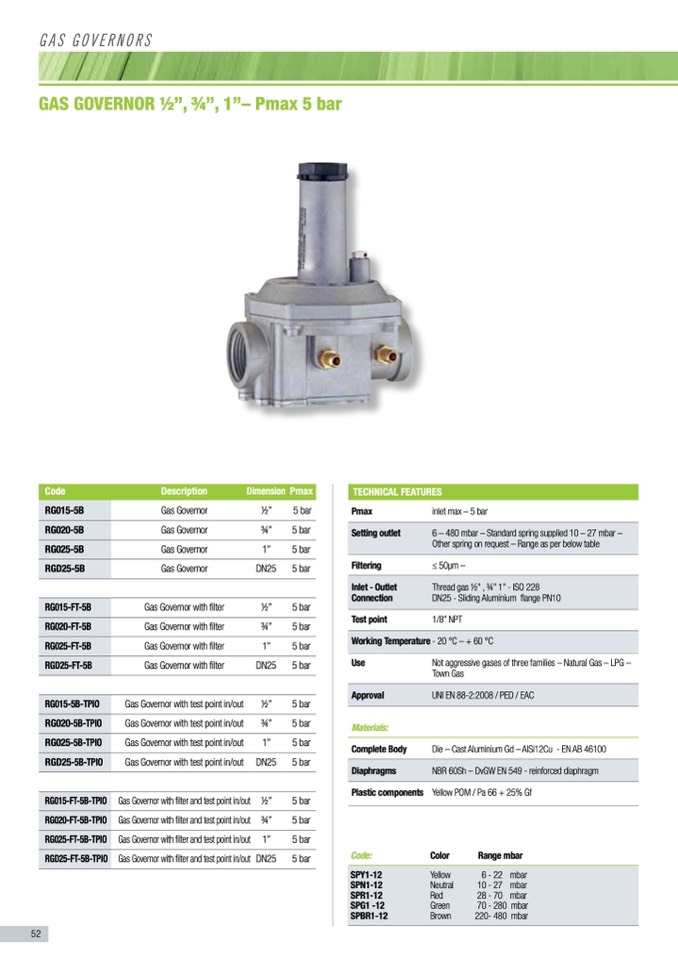

GAS GOVERNOR 1⁄2”,
3⁄4”, 1”– Pmax 5 bar
Gas Governor
Gas Governor
Gas Governor
Gas Governor
Gas Governor with
Gas Governor with
Gas Governor with
Gas Governor with
1⁄2”
3⁄4”
1”
DN25
filter
1⁄2”
filter
3⁄4”
filter
1”
filter
DN25
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
5 bar
pmax
filtering
Test point
use
Materials:
complete body
plastic components
Code:
inlet max – 5 bar
≤50μm–
1/8” NPT
Not aggressive gases of three families – Natural Gas – LPG –
Town Gas
Die–CastAluminiumGd–AlSi12Cu -ENAB46100
YellowPOM/Pa66+25%Gf
color
range mbar
Gas Governor with test point in/out
1⁄2”
Gas Governor with test point in/out
3⁄4”
Gas Governor with test point in/out
1”
Gas Governor with test point in/out DN25
Gas Governor with filter and test point in/out 1⁄2”
Gas Governor with filter and test point in/out 3⁄4”
Gas Governor with filter and test point in/out 1”
GasGovernorwithfilterandtestpointin/out DN25
