code

Description

Dimension pmax

rG050-2b

TEcHnIcal fEaTurEs

workingTemperature -20°C/+60°C

approval

UNI EN 88-2:2008 / PED / EAC

Diaphragms

NBR 60Sh – DvGW EN 549 - reinforced diaphragm

rGD50-2b

setting outlet

6 – 480 mbar – Standard spring supplied 10 – 27 mbar –

Other spring on request – Range as per below table

rG050-fT-2b

rGD50-fT-2b

Inlet - outlet

Thread gas 2” - ISO 228

connection

DN50-SlidingAluminium flangePN10

rG050-2b-TpIo

rGD50-2b-TpIo

rG050-fT-2b-TpIo

rGD50-fT-2b-TpIo

spy3-12

Yellow

spn3-12

Neutral

spr3-12

Red

spbk3-12

Black

spG3-12

Green

spbr3-12

Brown

6 - 22 mbar

10 - 27 mbar

28 - 70 mbar

60 - 130 mbar

120 - 300 mbar

220 - 480 mbar

46

Gas Governors

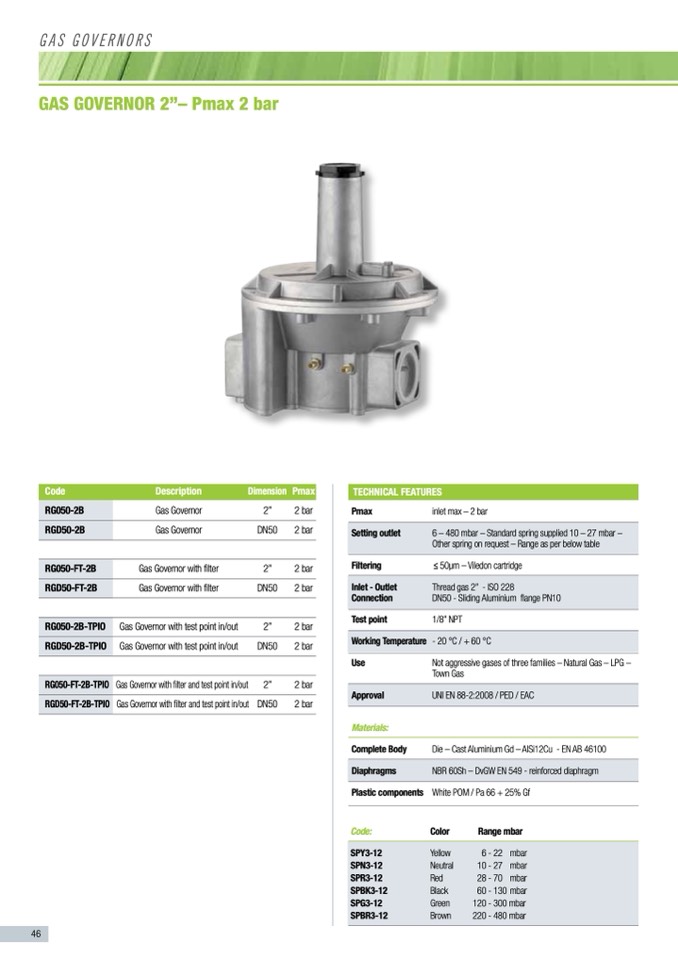

GAS GOVERNOR 2”– Pmax 2 bar

Gas Governor

2”

Gas Governor

DN50

Gas Governor with filter

2”

Gas Governor with filter

DN50

Gas Governor with test point in/out

2”

Gas Governor with test point in/out

DN50

Gas Governor with filter and test point in/out

2”

Gas Governor with filter and test point in/out DN50

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

pmax

filtering

Test point

use

Materials:

complete body

plastic components

Code:

inlet max – 2 bar

≤ 50μm – Viledon cartridge

1/8” NPT

Not aggressive gases of three families – Natural Gas – LPG –

Town Gas

Die–CastAluminiumGd–AlSi12Cu -ENAB46100

WhitePOM/Pa66+25%Gf

color

range mbar
