code

Description

Dimensionpmax

rG032-2b

TEcHnIcal fEaTurEs

rG040-2b

rGD32-2b

rGD40-2b

setting outlet

6 – 480 mbar – Standard spring supplied 10 – 27 mbar –

Other spring on request – Range as per below table

Inlet - outlet

Thread gas 1 1⁄4” 11⁄2” - ISO 228

connection

DN32 DN40 - Sliding Aluminium flange PN10

rG032-fT-2b

rG040-fT-2b

rGD32-fT-2b

rGD40-fT-2b

working Temperature

approval

Diaphragms

- 20 °C – + 60 °C

UNI EN 88-2:2008 / PED / EAC

NBR 60Sh – DvGW EN 549 - reinforced diaphragm

rG032-2b-TpIo

rG040-2b-TpIo

rGD32-2b-TpIo

rGD40-2b-TpIo

rG032-fT-2b-TpIo

rG040-fT-2b-TpIo

rGD32-fT-2b-TpIo

rGD40-fT-2b-TpIo

spy2-12

Yellow

spn2-12

Neutral

spr2-12

Red

spbk2-12

Black

spG2-12

Green

spbr2-12

Brown

6 - 22 mbar

10 - 27 mbar

28 - 70 mbar

60 - 130 mbar

120 - 300 mbar

220 - 480 mbar

44

Gas Governors

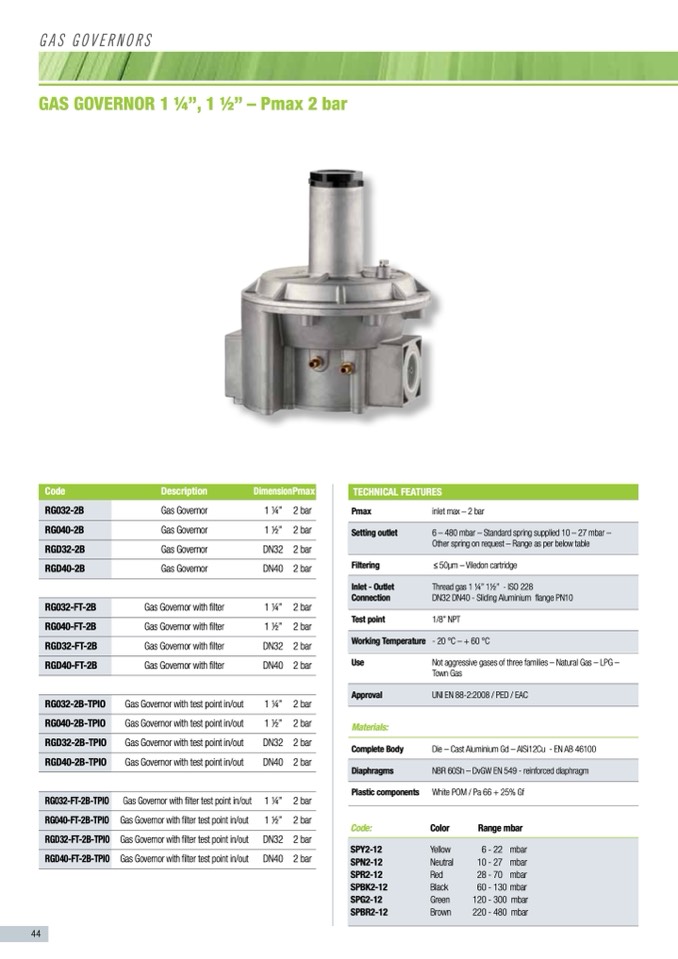

GAS GOVERNOR 1 1⁄4”, 1 1⁄2” – Pmax 2 bar

Gas Governor

Gas Governor

Gas Governor

Gas Governor

Gas Governor with

Gas Governor with

Gas Governor with

Gas Governor with

filter

filter

filter

filter

11⁄4” 2 bar

11⁄2” 2 bar

DN32 2 bar

DN40 2 bar

11⁄4” 2 bar

11⁄2” 2 bar

DN32 2 bar

DN40 2 bar

11⁄4” 2 bar

11⁄2” 2 bar

DN32 2 bar

DN40 2 bar

11⁄4” 2 bar

11⁄2” 2 bar

DN32 2 bar

DN40 2 bar

pmax

filtering

Test point

use

Materials:

complete body

plastic components

Code:

inlet max – 2 bar

≤ 50μm – Viledon cartridge

1/8” NPT

Not aggressive gases of three families – Natural Gas – LPG –

Town Gas

Die–CastAluminiumGd–AlSi12Cu -ENAB46100

WhitePOM/Pa66+25%Gf

color

range mbar

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with filter test point in/out

Gas Governor with filter test point in/out

Gas Governor with filter test point in/out

Gas Governor with filter test point in/out
