code

Description

Dimension pmax

rG015-Hc-2b

TEcHnIcal fEaTurEs

working Temperature - 20 °C – + 60 °C

approval

UNI EN 88-2:2008 / PED / EAC

Diaphragms

NBR 60Sh – DvGW EN 549 - reinforced diaphragm

rG020-Hc-2b

rG025-Hc-2b

rGD25-Hc-2b

setting outlet

6 – 480 mbar – Standard spring supplied 10 – 27 mbar –

Other spring on request – Range as per below table

Inlet - outlet

Thread gas 1⁄2” , 3⁄4” 1” - ISO 228

connection

DN25-SlidingAluminium flangePN10

rG015-Hc-fT-2b

rG020-Hc-fT-2b

rG025-Hc-fT-2b

rGD25-Hc-fT-2b

rG015-Hc-2b-TpIo

rG020-Hc-2b-TpIo

rG025-Hc-2b-TpIo

rGD25-Hc-2b-TpIo

rG015-Hc-fT-2b-TpIo

rG020-Hc-fT-2b-TpIo

rG025-Hc-fT-2b-TpIo

rGD25-Hc-fT-2b-TpIo

spy1-12Hc

spn1-12Hc

spr1-12Hc

spG1-12Hc

spbr2-12Hc

Yellow

Neutral

Red

Green

Brown

6 - 22 mbar

10 - 27 mbar

28 - 70 mbar

70 - 280 mbar

220 - 480 mbar

42

Gas Governors

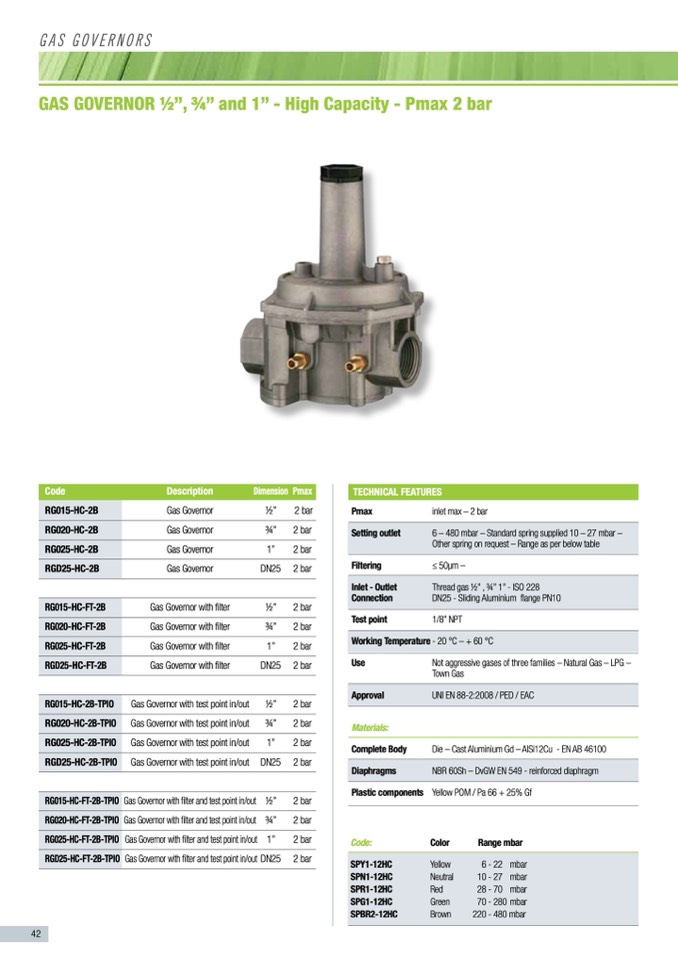

GAS GOVERNOR 1⁄2”,

3⁄4” and 1” - High Capacity - Pmax 2 bar

Gas Governor

Gas Governor

Gas Governor

Gas Governor

Gas Governor with

Gas Governor with

Gas Governor with

Gas Governor with

1⁄2”

2bar

pmax

filtering

Test point

use

Materials:

complete body

plastic components

Code:

inlet max – 2 bar

≤50μm–

1/8” NPT

Not aggressive gases of three families – Natural Gas – LPG –

Town Gas

Die–CastAluminiumGd–AlSi12Cu -ENAB46100

YellowPOM/Pa66+25%Gf

color

range mbar

3⁄4”

1”

DN25

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

filter

filter

filter

filter

DN25

1⁄2”

3⁄4”

1”

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with filter and test point in/out

Gas Governor with filter and test point in/out

Gas Governor with filter and test point in/out

Gas Governor with filter and test point in/out DN25

1⁄2”

3⁄4”

1”

DN25

1⁄2”

3⁄4”

1”
