code

Description

Dimension pmax

rG015-2b

TEcHnIcal fEaTurEs

working Temperature - 20 °C – + 60 °C

approval

UNI EN 88-2:2008 / PED / EAC

Diaphragms

NBR 60Sh – DvGW EN 549 - reinforced diaphragm

rG020-2b

rG025-2b

rGD25-2b

setting outlet

6 – 480 mbar – Standard spring supplied 10 – 27 mbar –

Other spring on request – Range as per below table

Inlet - outlet

Thread gas 1⁄2” , 3⁄4” 1” - ISO 228

connection

DN25-SlidingAluminium flangePN10

rG015-fT-2b

rG020-fT-2b

rG025-fT-2b

rGD25-fT-2b

rG015-2b-TpIo

rG020-2b-TpIo

rG025-2b-TpIo

rGD25-2b-TpIo

rG015-fT-2b-TpIo

rG020-fT-2b-TpIo

rG025-fT-2b-TpIo

rGD25-fT-2b-TpIo

spy1-12

spn1-12

spr1-12

spG1 -12

spbr1-12

Yellow

Neutral

Red

Green

Brown

6 - 22 mbar

10 - 27 mbar

28 - 70 mbar

70 - 280 mbar

220 - 480 mbar

40

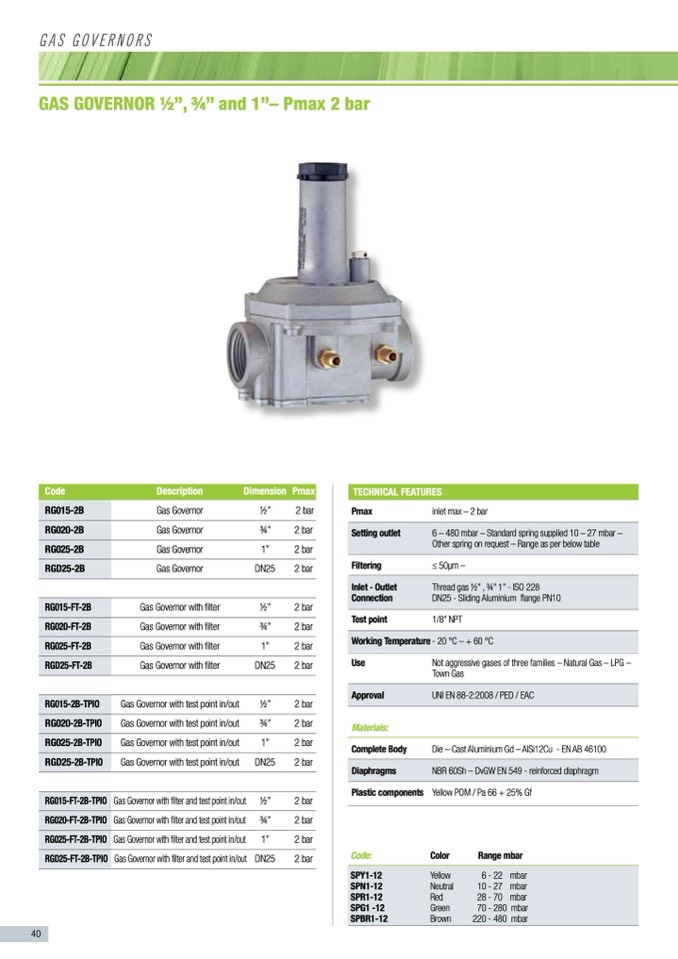

Gas Governors

GAS GOVERNOR 1⁄2”,

3⁄4” and 1”– Pmax 2 bar

Gas Governor

Gas Governor

Gas Governor

Gas Governor

Gas Governor with

Gas Governor with

Gas Governor with

Gas Governor with

1⁄2”

3⁄4”

1”

DN25

filter

1⁄2”

filter

3⁄4”

filter

1”

filter

DN25

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

2 bar

pmax

filtering

Test point

use

Materials:

complete body

plastic components

Code:

inlet max – 2 bar

≤50μm–

1/8” NPT

Not aggressive gases of three families – Natural Gas – LPG –

Town Gas

Die–CastAluminiumGd–AlSi12Cu -ENAB46100

YellowPOM/Pa66+25%Gf

color

range mbar

Gas Governor with test point in/out

1⁄2”

Gas Governor with test point in/out

3⁄4”

Gas Governor with test point in/out

1”

Gas Governor with test point in/out

DN25

Gas Governor with filter and test point in/out 1⁄2”

Gas Governor with filter and test point in/out 3⁄4”

Gas Governor with filter and test point in/out

1”

Gas Governor with filter and test point in/out DN25
