code

Description

Dimension pmax

rGD65-1b

TEcHnIcal fEaTurEs

workingTemperature -20°C–+60°C

approval

UNI EN 88-2:2008 / PED / EAC

Diaphragms

NBR 60Sh – DvGW EN 549

rGD80-1b

rGD100-1b

setting outlet

6 – 130 mbar – Standard spring supplied 10 – 27 mbar –

Other spring on request

rGD65-fT-1b

rGD80-fT-1b

rGD100-fT-1b

Inlet - outlet

Flanged connection DN65

connection

DN80 - DN100 - PN16

rGD65-1b-TpIo

rGD80-1b-TpIo

rGD100-1b-TpIo

rGD65-fT-1b-TpIo

rGD80-fT-1b-TpIo

rGD100-fT-1b-TpIo

spy4-12

Yellow

spn4-12

Neutral

spr4-12

Red

spbk4-12

Black

6 - 22 mbar

10 - 27 mbar

28 - 70 mbar

60 - 130 mbar

36

Gas Governors

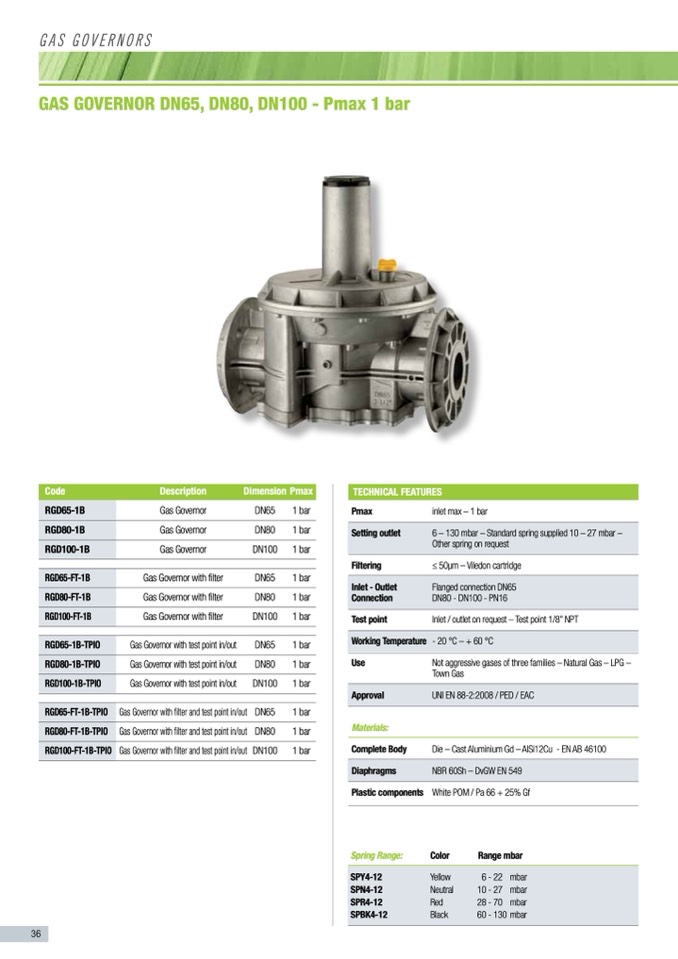

GAS GOVERNOR DN65, DN80, DN100 - Pmax 1 bar

Gas Governor

Gas Governor

Gas Governor

Gas Governor with filter

Gas Governor with filter

Gas Governor with filter

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with filter and test point in/out

Gas Governor with filter and test point in/out

Gas Governor with filter and test point in/out

DN65

1 bar

DN80

1 bar

DN100 1 bar

DN65

1 bar

DN80

1 bar

DN100 1 bar

DN65

1 bar

DN80

1 bar

DN100 1 bar

DN65

1 bar

DN80

1 bar

DN100 1 bar

pmax

filtering

Test point

use

Materials:

complete body

plastic components

Spring Range:

inlet max – 1 bar

≤ 50μm – Viledon cartridge

Inlet / outlet on request – Test point 1/8” NPT

Not aggressive gases of three families – Natural Gas – LPG –

Town Gas

Die–CastAluminiumGd–AlSi12Cu -ENAB46100

WhitePOM/Pa66+25%Gf

color

range mbar
