Gas DeTeCTIon

288

ZSDM1

ZSDG1

ZSDC1

Methane sensor

L.P.G. sensor

CO sensor

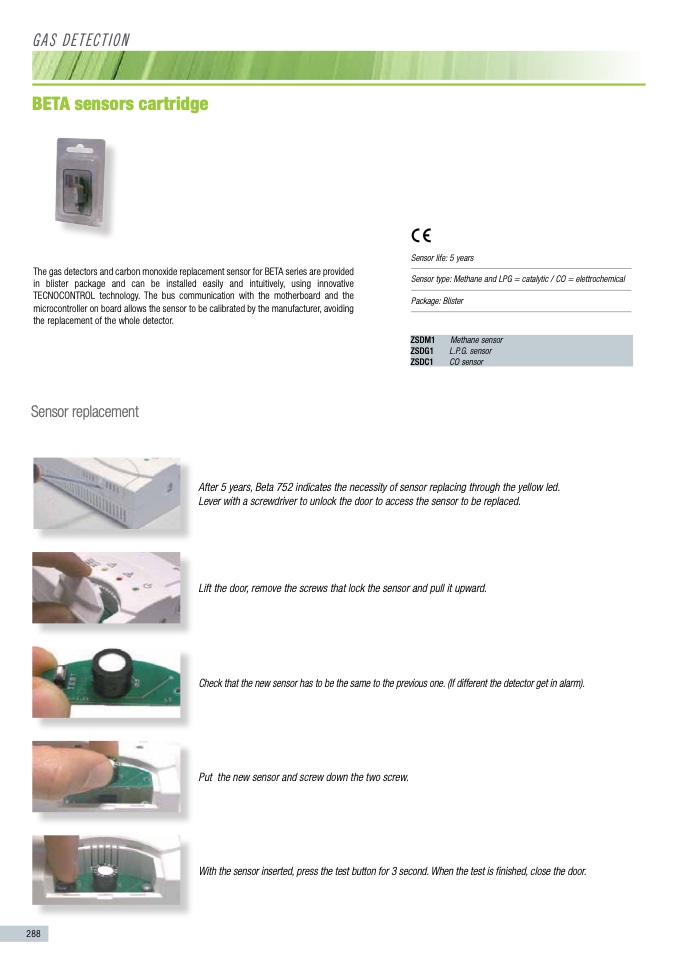

bETA sensors cartridge

The gas detectors and carbon monoxide replacement sensor for BETA series are provided

in blister package and can be installed easily and intuitively, using innovative

TECNOCONTROL technology. The bus communication with the motherboard and the

microcontroller on board allows the sensor to be calibrated by the manufacturer, avoiding

the replacement of the whole detector.

Sensor life: 5 years

Sensor type: Methane and LPG = catalytic / CO = elettrochemical

Package: Blister

Sensor replacement

After 5 years, Beta 752 indicates the necessity of sensor replacing through the yellow led.

Lever with a screwdriver to unlock the door to access the sensor to be replaced.

Lift the door, remove the screws that lock the sensor and pull it upward.

Check that the new sensor has to be the same to the previous one. (If different the detector get in alarm).

Put the new sensor and screw down the two screw.

With the sensor inserted, press the test button for 3 second. When the test is finished, close the door.
