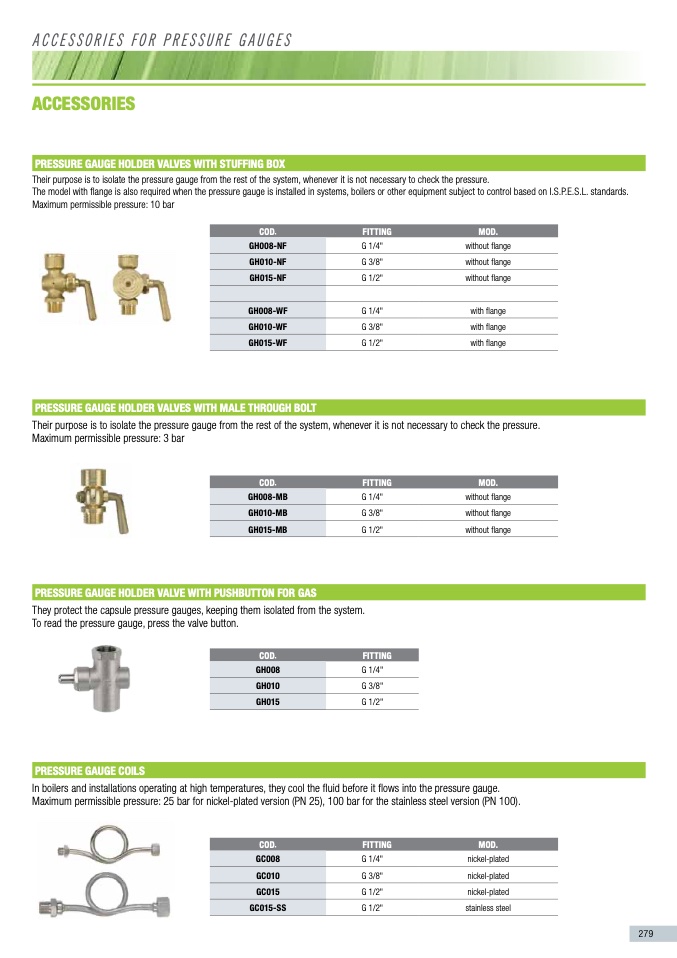

aCCessorIes For pressUre GaUGes

ACCESSORIES

prEssurE GauGE HolDEr ValVEs wITH sTuffInG box

Their purpose is to isolate the pressure gauge from the rest of the system, whenever it is not necessary to check the pressure.

The model with flange is also required when the pressure gauge is installed in systems, boilers or other equipment subject to control based on I.S.P.E.S.L. standards.

Maximum permissible pressure: 10 bar

coD.

GH008-nf

GH010-nf

fITTInG

G 1/4"

G 3/8"

G 1/2"

G 1/4"

G 3/8"

G 1/2"

without flange

without flange

without flange

with flange

with flange

with flange

moD.

GH015-nf

GH008-wf

GH010-wf

GH015-wf

prEssurE GauGE HolDEr ValVEs wITH malE THrouGH bolT

Their purpose is to isolate the pressure gauge from the rest of the system, whenever it is not necessary to check the pressure.

Maximum permissible pressure: 3 bar

coD.

GH008-mb

fITTInG

G 1/4"

G 3/8"

G 1/2"

without flange

without flange

without flange

moD.

GH010-mb

GH015-mb

prEssurE GauGE HolDEr ValVE wITH pusHbuTTon for Gas

They protect the capsule pressure gauges, keeping them isolated from the system.

To read the pressure gauge, press the valve button.

G 1/4"

G 3/8"

G 1/2"

prEssurE GauGE coIls

In boilers and installations operating at high temperatures, they cool the fluid before it flows into the pressure gauge.

Maximum permissible pressure: 25 bar for nickel-plated version (PN 25), 100 bar for the stainless steel version (PN 100).

coD.

GH008

fITTInG

GH010

GH015

coD.

Gc008

Gc010

fITTInG

G 1/4"

G 3/8"

G 1/2"

G 1/2"

nickel-plated

nickel-plated

nickel-plated

moD.

Gc015

Gc015-ss

stainless steel
