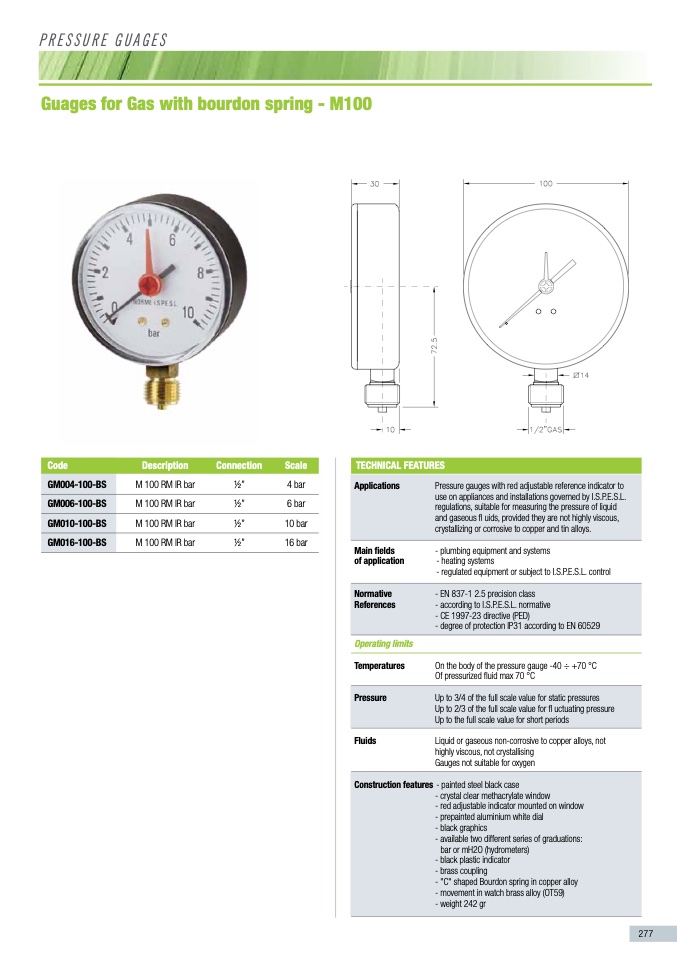

pressUre GUaGes

Guages for Gas with bourdon spring - m100

TEcHnIcal fEaTurEs

applications

Pressure gauges with red adjustable reference indicator to

use on appliances and installations governed by I.S.P.E.S.L.

regulations, suitable for measuring the pressure of liquid

and gaseous fl uids, provided they are not highly viscous,

crystallizing or corrosive to copper and tin alloys.

code

Description

connection

scale

Gm004-100-bs

Gm006-100-bs

Gm010-100-bs

Gm016-100-bs

M100RMIRbar

1⁄2”

4bar

M100RMIRbar

1⁄2”

6bar

M100RMIRbar

1⁄2”

10bar

M100RMIRbar

1⁄2”

16bar

main fields

of application

Operating limits

Temperatures

fluids

- plumbing equipment and systems

- heating systems

- regulated equipment or subject to I.S.P.E.S.L. control

On the body of the pressure gauge -40 ÷ +70 °C

Of pressurized fluid max 70 °C

Liquid or gaseous non-corrosive to copper alloys, not

highly viscous, not crystallising

Gauges not suitable for oxygen

normative

- EN 837-1 2.5 precision class

references

- according to I.S.P.E.S.L. normative

- CE 1997-23 directive (PED)

- degree of protection IP31 according to EN 60529

pressure

Up to 3/4 of the full scale value for static pressures

Up to 2/3 of the full scale value for fl uctuating pressure

Up to the full scale value for short periods

construction features - painted steel black case

- crystal clear methacrylate window

- red adjustable indicator mounted on window

- prepainted aluminium white dial

- black graphics

- available two different series of graduations:

bar or mH2O (hydrometers)

- black plastic indicator

- brass coupling

- "C" shaped Bourdon spring in copper alloy

- movement in watch brass alloy (OT59)

- weight 242 gr
