268

code

packing

Dimension

pmax

ys008

ys010

ys015

TEcHnIcal fEaTurEs

workingTemperature -20°C,110°Cinabsenceofsteam

ys020

ys025

ys032

ys040

ys050

ys065

ys080

ys100

Inlet - outlet

BSP ISO228

connection

y sTraIners

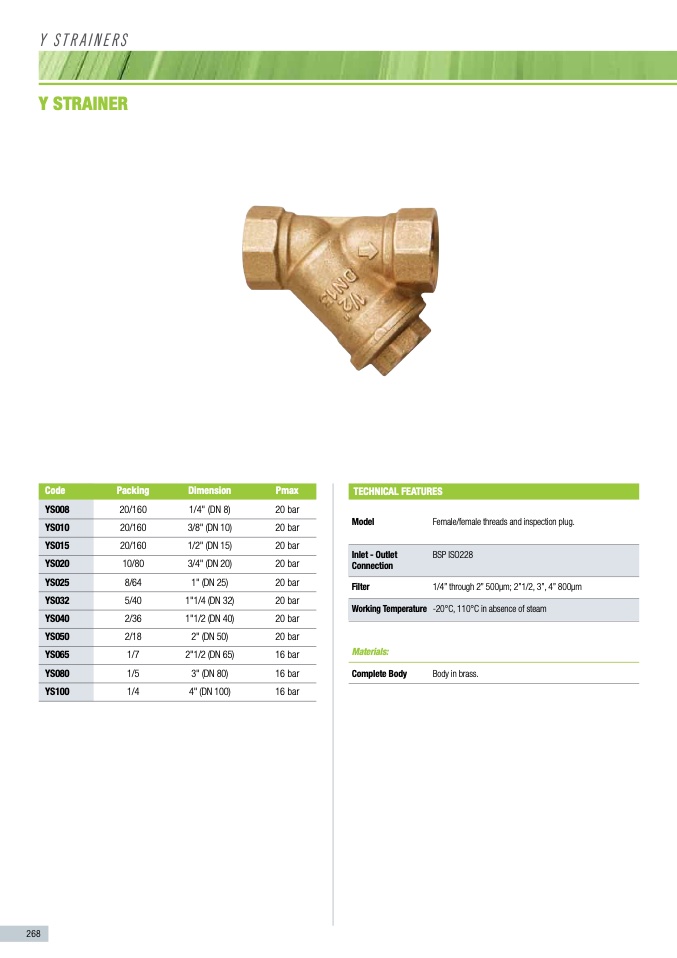

y STRAINER

20/160

20/160

20/160

10/80

8/64

5/40

2/36

2/18

1/7

1/5

1/4

1/4" (DN 8)

3/8" (DN 10)

1/2" (DN 15)

3/4" (DN 20)

1" (DN 25)

1"1/4 (DN 32)

1"1/2 (DN 40)

2" (DN 50)

2"1/2 (DN 65)

3" (DN 80)

4" (DN 100)

20 bar

20 bar

20 bar

20 bar

20 bar

20 bar

20 bar

20 bar

16 bar

16 bar

16 bar

model

filter

Materials:

complete body

Female/female threads and inspection plug.

1/4” through 2” 500μm; 2”1/2, 3”, 4” 800μm

Body in brass.
