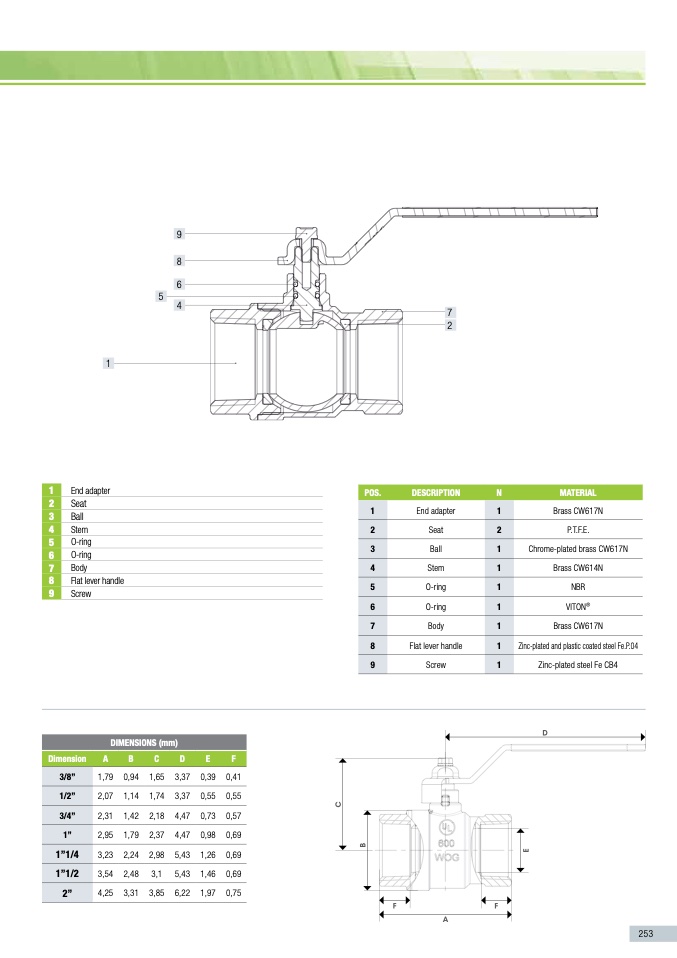

1

1

End adapter

2

Seat

3

Ball

4

Stem

5

O-ring

6

O-ring

7

Body

8

Flat lever handle

9

Screw

pos.

DEscrIpTIon

1

End adapter

2

Seat

3

Ball

4

Stem

5

O-ring

6

O-ring

7

Body

8

Flat lever handle

9

Screw

n

maTErIal

1

Brass CW617N

2

P.T.F.E.

1

Chrome-plated brass CW617N

1

Brass CW614N

1

NBR

1

VITON

®

1

Brass CW617N

1

Zinc-plated and plastic coated steel Fe.P.04

1

Zinc-plated steel Fe CB4

D

DImEnsIons (mm)

Dimension

a

b

c

D

E

f

3/8”

1,79 0,94 1,65 3,37 0,39 0,41

1/2”

2,07 1,14 1,74 3,37 0,55 0,55

3/4”

2,31 1,42 2,18 4,47 0,73 0,57

1”

2,95 1,79 2,37 4,47 0,98 0,69

1”1/4

3,23 2,24 2,98 5,43 1,26 0,69

1”1/2

3,54 2,48 3,1 5,43 1,46 0,69

2”

4,25 3,31 3,85 6,22 1,97 0,75

5

9

8

6

4

F

F

A

7

2

E

C

B

253
