Gas soLenoID vaLves
code
Description
Dimension Type
pmax
36801260
36811264
36821268
36831272
36841276
36841280
TEcHnIcal fEaTurEs
body
closing time
protection level
Brass ST-CW617N – EN 12420 – Yellow Painted
< 1 sec
IP65
approval
PED / EAC
EN161
Atex-II3GExnAIICT4Gc
226

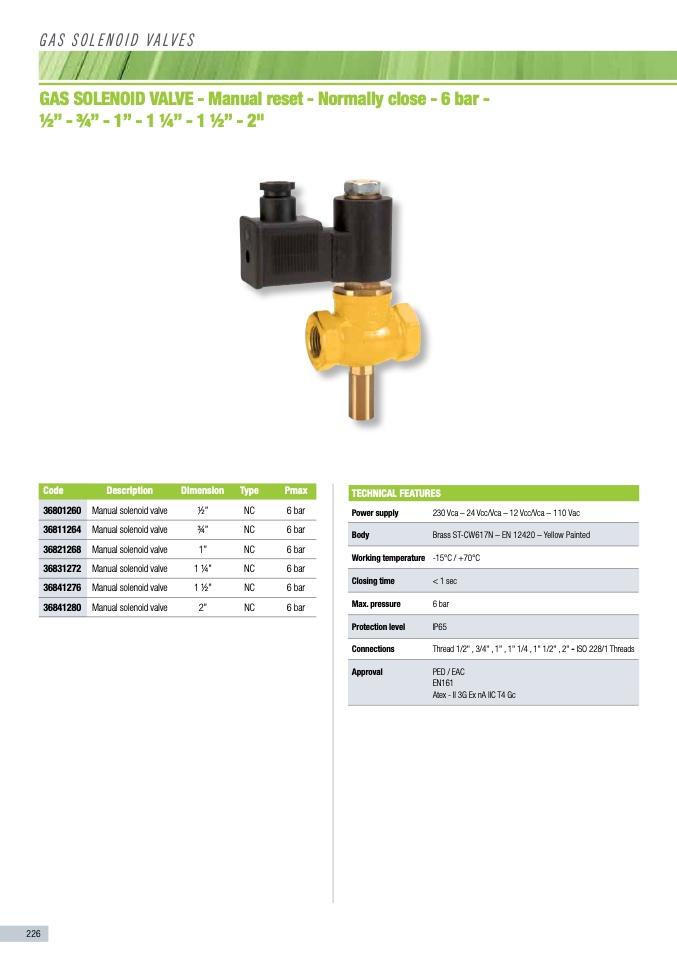

GAS SOlENOID VAlVE - manual reset - Normally close - 6 bar -
1⁄2”-3⁄4”-1”-11⁄4”-11⁄2”-2"
Manual solenoid valve
Manual solenoid valve
Manual solenoid valve
Manual solenoid valve
Manual solenoid valve
Manual solenoid valve
1⁄2”
NC
3⁄4”
NC
1”
NC
11⁄4”
NC
11⁄2”
NC
2”
NC
6 bar
6 bar
6 bar
6 bar
6 bar
6 bar
power supply
working temperature
max. pressure
connections
230 Vca – 24 Vcc/Vca – 12 Vcc/Vca – 110 Vac
-15°C / +70°C
6 bar
Thread 1/2" , 3/4" , 1" , 1" 1/4 , 1" 1/2" , 2" - ISO 228/1 Threads
