Technical details

BGT 1.810

BIOFLEX Pipe system

Biogas Technology

Type CNW

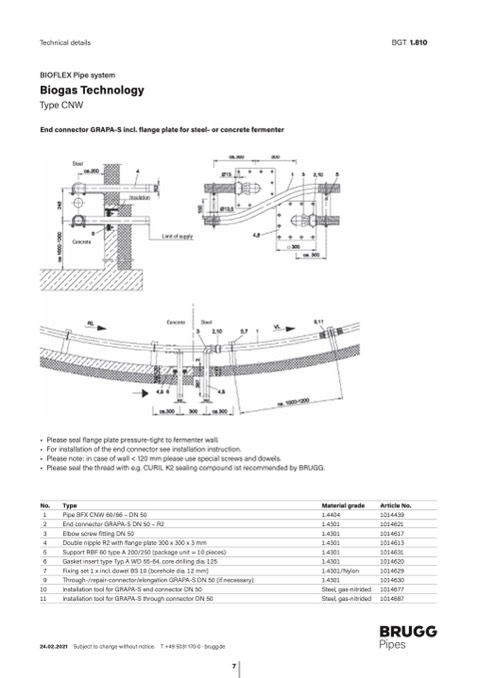

End connector GRAPA-S incl. flange plate for steel- or concrete fermenter

Steel

Concrete

Insulation

Limit of supply

Concrete

Steel

• Please seal flange plate pressure-tight to fermenter wall.

• For installation of the end connector see installation instruction.

• Please note: in case of wall < 120 mm please use special screws and dowels.

• Please seal the thread with e.g. CURIL K2 sealing compound ist recommended by BRUGG.

No.

Type

1

Pipe BFX CNW 60/66 – DN 50

2

End connector GRAPA-S DN 50 – R2

3

Elbow screw fitting DN 50

4

Double nipple R2 with flange plate 300 x 300 x 3 mm

5

Support RBF 60 type A 200/250 (package unit = 10 pieces)

6

Gasket insert type Typ A WD 55-64, core drilling dia. 125

7

Fixing set 1 x incl. dowel BS 10 (borehole dia. 12 mm)

9

Through-/repair-connector/elongation GRAPA-S DN 50 (if necessary)

Material grade

1.4404

1.4301

1.4301

1.4301

1.4301

1.4301

1.4301/Nylon

1.4301

Steel, gas-nitrided

Steel, gas-nitrided

Article No.

1014439

1014621

1014617

1014613

1014631

1014620

1014629

1014630

1014677

1014687

10

Installation tool for GRAPA-S end connector DN 50

11

Installation tool for GRAPA-S through connector DN 50
