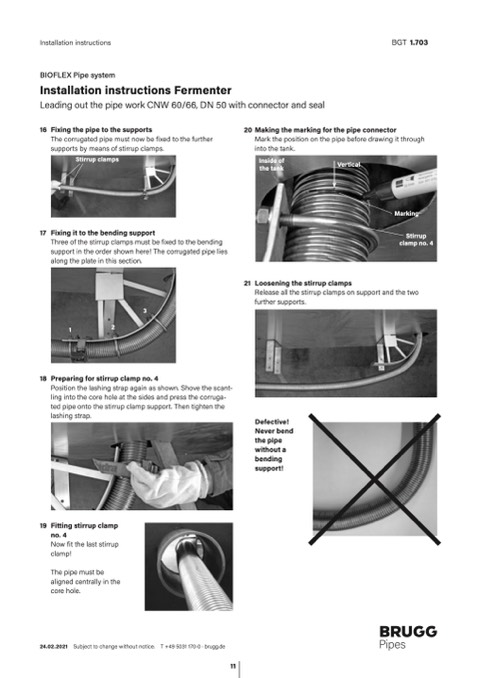

Installation instructions

BGT 1.703

BIOFLEX Pipe system

Installation instructions Fermenter

Leading out the pipe work CNW 60/66, DN 50 with connector and seal

16 Fixing the pipe to the supports

The corrugated pipe must now be fixed to the further

supports by means of stirrup clamps.

Stirrup clamps

17 Fixingittothebendingsupport

Three of the stirrup clamps must be fixed to the bending

support in the order shown here! The corrugated pipe lies

along the plate in this section.

20 Making the marking for the pipe connector

Mark the position on the pipe before drawing it through

into the tank.

Inside of

the tank

Vertical

Marking

Stirrup

clamp no. 4

21 Looseningthestirrupclamps

Release all the stirrup clamps on support and the two

further supports.

1

3

2

18 Preparing for stirrup clamp no. 4

Position the lashing strap again as shown. Shove the scant-

ling into the core hole at the sides and press the corruga-

ted pipe onto the stirrup clamp support. Then tighten the

lashing strap.

19 Fitting stirrup clamp

no. 4

Now fit the last stirrup

clamp!

The pipe must be

aligned centrally in the

core hole.

24.02.2021 Subject to change without notice. T +49 5031 170-0 · brugg.de Page 4

11

Defective!

Never bend

the pipe

without a

bending

support!
