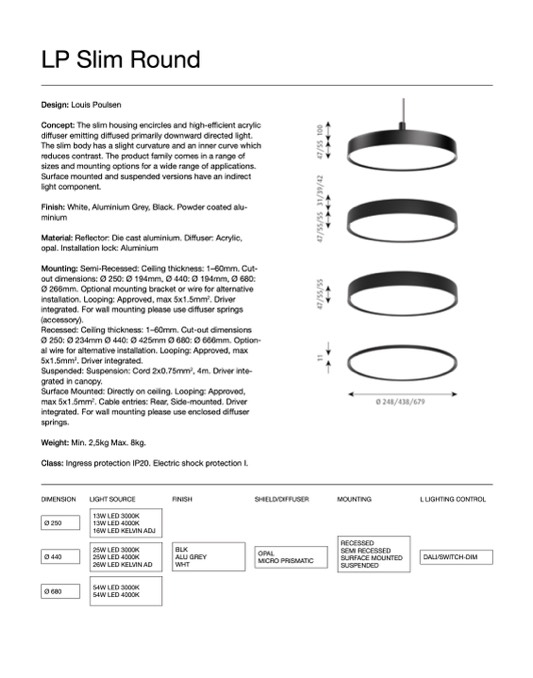

LP Slim Round

Design: Louis Poulsen

Concept: The slim housing encircles and high-efficient acrylic

diffuser emitting diffused primarily downward directed light.

The slim body has a slight curvature and an inner curve which

reduces contrast. The product family comes in a range of

sizes and mounting options for a wide range of applications.

Surface mounted and suspended versions have an indirect

light component.

Finish: White, Aluminium Grey, Black. Powder coated alu-

minium

Material: Reflector: Die cast aluminium. Diffuser: Acrylic,

opal. Installation lock: Aluminium

Mounting: Semi-Recessed: Ceiling thickness: 1–60mm. Cut-

out dimensions: Ø 250: Ø 194mm, Ø 440: Ø 194mm, Ø 680:

Ø 266mm. Optional mounting bracket or wire for alternative

installation. Looping: Approved, max 5x1.5mm

2

. Driver

integrated. For wall mounting please use diffuser springs

(accessory).

Recessed: Ceiling thickness: 1–60mm. Cut-out dimensions

Ø 250: Ø 234mm Ø 440: Ø 425mm Ø 680: Ø 666mm. Option-

al wire for alternative installation. Looping: Approved, max

5x1.5mm

2

. Driver integrated.

Suspended: Suspension: Cord 2x0.75mm

2

, 4m. Driver inte-

grated in canopy.

Surface Mounted: Directly on ceiling. Looping: Approved,

max 5x1.5mm

2

. Cable entries: Rear, Side-mounted. Driver

integrated. For wall mounting please use enclosed diffuser

springs.

Weight: Min. 2,5kg Max. 8kg.

Class: Ingress protection IP20. Electric shock protection I.

DIMENSION

LIGHT SOURCE

FINISH

SHIELD/DIFFUSER

MOUNTING

L LIGHTING CONTROL

13W LED 3000K

13W LED 4000K

16W LED KELVIN ADJ

Ø 250

RECESSED

SEMI RECESSED

SURFACE MOUNTED

SUSPENDED

25W LED 3000K

25W LED 4000K

26W LED KELVIN AD

BLK

ALU GREY

WHT

Ø 440

54W LED 3000K

54W LED 4000K

OPAL

MICRO PRISMATIC

DALI/SWITCH-DIM

Ø 680
