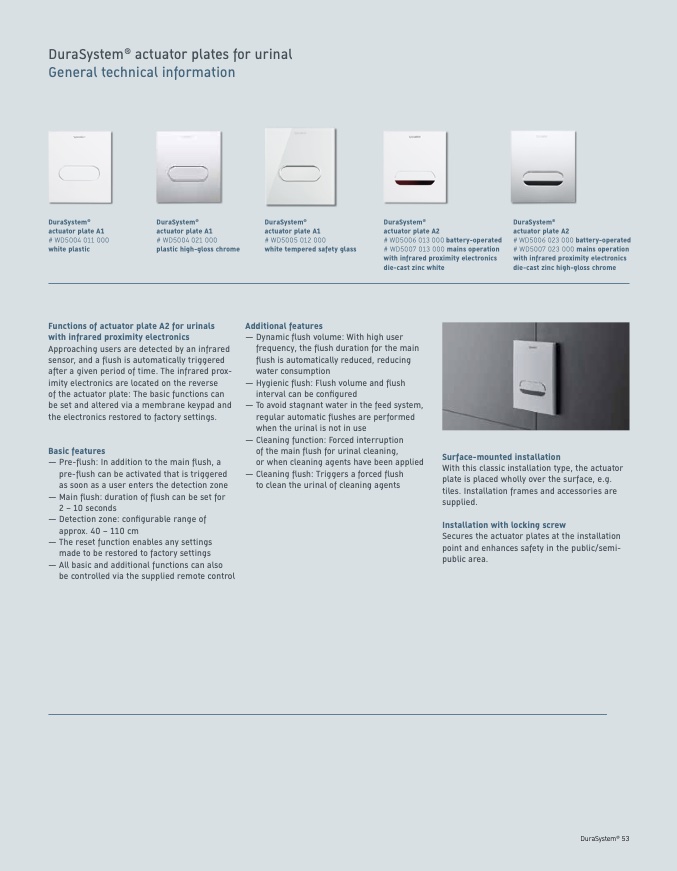

DuraSystem

®

actuator plates for urinal

General technical information

DuraSystem

®

actuator plate A1

# WD5004 011 000

white plastic

DuraSystem

®

actuator plate A1

# WD5004 021 000

plastic high-gloss chrome

DuraSystem

®

actuator plate A1

# WD5005 012 000

white tempered safety glass

Additional features

— Dynamic flush volume: With high user

frequency, the flush duration for the main

flush is automatically reduced, reducing

water consumption

— Hygienic flush: Flush volume and flush

interval can be configured

— To avoid stagnant water in the feed system,

regular automatic flushes are performed

when the urinal is not in use

— Cleaning function: Forced interruption

of the main flush for urinal cleaning,

or when cleaning agents have been applied

— Cleaning flush: Triggers a forced flush

to clean the urinal of cleaning agents

DuraSystem

®

actuator plate A2

# WD5006 023 000 battery-operated

# WD5007 023 000 mains operation

with infrared proximity electronics

die-cast zinc high-gloss chrome

Surface-mounted installation

With this classic installation type, the actuator

plate is placed wholly over the surface, e.g.

tiles. Installation frames and accessories are

supplied.

Installation with locking screw

Secures the actuator plates at the installation

point and enhances safety in the public/semi-

public area.

DuraSystem

®

actuator plate A2

# WD5006 013 000 battery-operated

# WD5007 013 000 mains operation

with infrared proximity electronics

die-cast zinc white

Functions of actuator plate A2 for urinals

with infrared proximity electronics

Approaching users are detected by an infrared

sensor, and a flush is automatically triggered

after a given period of time. The infrared prox-

imity electronics are located on the reverse

of the actuator plate: The basic functions can

be set and altered via a membrane keypad and

the electronics restored to factory settings.

Basic features

— Pre-flush: In addition to the main flush, a

pre-flush can be activated that is triggered

as soon as a user enters the detection zone

— Main flush: duration of flush can be set for

2 – 10 seconds

— Detection zone: configurable range of

approx. 40 – 110 cm

— The reset function enables any settings

made to be restored to factory settings

— All basic and additional functions can also

be controlled via the supplied remote control

DuraSystem

®
