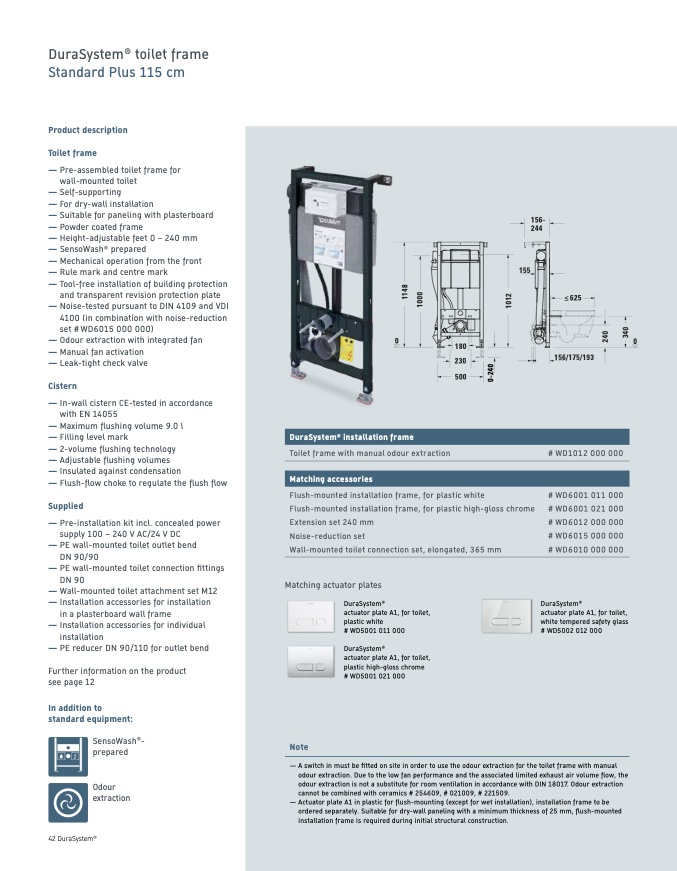

DuraSystem

®

toilet frame

Standard Plus 115 cm

Product description

Toilet frame

— Pre-assembled toilet frame for

wall-mounted toilet

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame

— Height-adjustable feet 0 − 240 mm

— SensoWash

®

prepared

— Mechanical operation from the front

— Rule mark and centre mark

— Tool-free installation of building protection

and transparent revision protection plate

— Noise-tested pursuant to DIN 4109 and VDI

4100 (in combination with noise-reduction

set # WD6015 000 000)

— Odour extraction with integrated fan

— Manual fan activation

— Leak-tight check valve

Cistern

— In-wall cistern CE-tested in accordance

with EN 14055

— Maximum flushing volume 9.0 l

— Filling level mark

— 2-volume flushing technology

— Adjustable flushing volumes

— Insulated against condensation

— Flush-flow choke to regulate the flush flow

Supplied

— Pre-installation kit incl. concealed power

supply 100 – 240 V AC/24 V DC

— PE wall-mounted toilet outlet bend

DN 90/90

— PE wall-mounted toilet connection fittings

DN 90

— Wall-mounted toilet attachment set M12

— Installation accessories for installation

in a plasterboard wall frame

— Installation accessories for individual

installation

— PE reducer DN 90/110 for outlet bend

Further information on the product

see page 12

In addition to

standard equipment:

SensoWash

®

-

prepared

Odour

extraction

156-

244

155

≥ 625

42 DuraSystem

®

0

DuraSystem

®

installation frame

Toilet frame with manual odour extraction

Matching accessories

180

230

500

0

0

-

2

4

0

2

4

0

3

4

0

1

1

4

8

1

0

0

0

1

0

1

2

Flush-mounted installation frame, for plastic white

Flush-mounted installation frame, for plastic high-gloss chrome

Extension set 240 mm

Noise-reduction set

Wall-mounted toilet connection set, elongated, 365 mm

Matching actuator plates

156/175/193

# WD1012 000 000

# WD6001 011 000

# WD6001 021 000

# WD6012 000 000

# WD6015 000 000

# WD6010 000 000

DuraSystem

®

actuator plate A1, for toilet,

white tempered safety glass

# WD5002 012 000

Note

DuraSystem

®

actuator plate A1, for toilet,

plastic white

# WD5001 011 000

DuraSystem

®

actuator plate A1, for toilet,

plastic high-gloss chrome

# WD5001 021 000

— A switch in must be fitted on site in order to use the odour extraction for the toilet frame with manual

odour extraction. Due to the low fan performance and the associated limited exhaust air volume flow, the

odour extraction is not a substitute for room ventilation in accordance with DIN 18017. Odour extraction

cannot be combined with ceramics # 254609, # 021009, # 221509.

— Actuator plate A1 in plastic for flush-mounting (except for wet installation), installation frame to be

ordered separately. Suitable for dry-wall paneling with a minimum thickness of 25 mm, flush-mounted

installation frame is required during initial structural construction.
