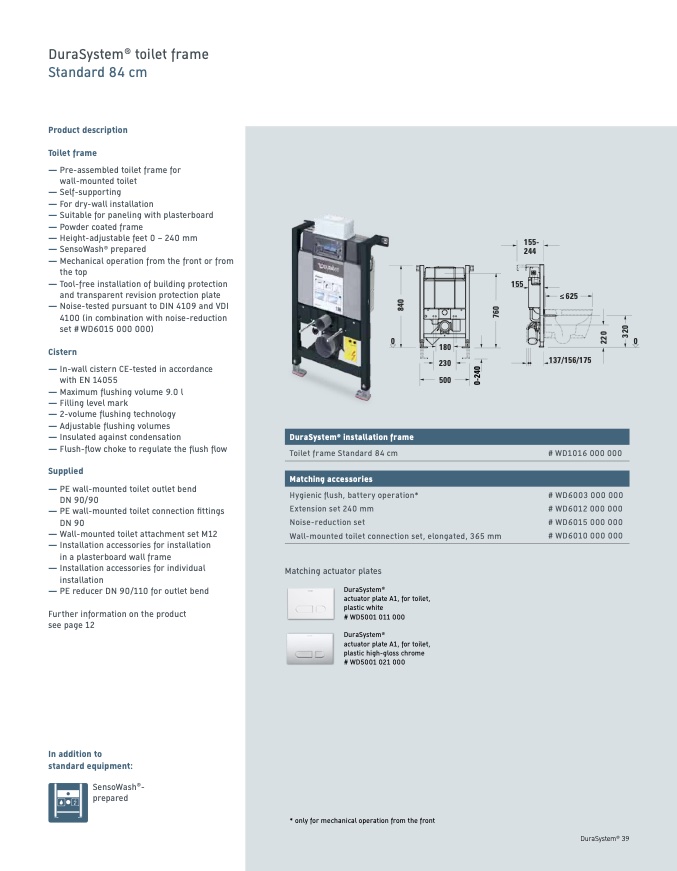

DuraSystem

®

toilet frame

Standard 84 cm

Product description

Toilet frame

— Pre-assembled toilet frame for

wall-mounted toilet

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame

— Height-adjustable feet 0 – 240 mm

— SensoWash

®

prepared

— Mechanical operation from the front or from

the top

— Tool-free installation of building protection

and transparent revision protection plate

— Noise-tested pursuant to DIN 4109 and VDI

4100 (in combination with noise-reduction

set # WD6015 000 000)

Cistern

— In-wall cistern CE-tested in accordance

with EN 14055

— Maximum flushing volume 9.0 l

— Filling level mark

— 2-volume flushing technology

— Adjustable flushing volumes

— Insulated against condensation

— Flush-flow choke to regulate the flush flow

Supplied

— PE wall-mounted toilet outlet bend

DN 90/90

— PE wall-mounted toilet connection fittings

DN 90

— Wall-mounted toilet attachment set M12

— Installation accessories for installation

in a plasterboard wall frame

— Installation accessories for individual

installation

— PE reducer DN 90/110 for outlet bend

Further information on the product

see page 12

In addition to

standard equipment:

SensoWash

®

-

prepared

155-

244

155

≥ 625

0

180

0

DuraSystem

®

installation frame

Toilet frame Standard 84 cm

Matching accessories

Hygienic flush, battery operation*

Extension set 240 mm

Noise-reduction set

Wall-mounted toilet connection set, elongated, 365 mm

Matching actuator plates

DuraSystem

®

actuator plate A1, for toilet,

plastic white

# WD5001 011 000

DuraSystem

®

actuator plate A1, for toilet,

plastic high-gloss chrome

# WD5001 021 000

* only for mechanical operation from the front

230

500

137/156/175

# WD1016 000 000

# WD6003 000 000

# WD6012 000 000

# WD6015 000 000

# WD6010 000 000

0

-

2

4

0

2

2

0

3

2

0

7

6

0

8

4

0

DuraSystem

®
